KIA Niro: Connector Inspection Procedure

  1. Handling of Connector

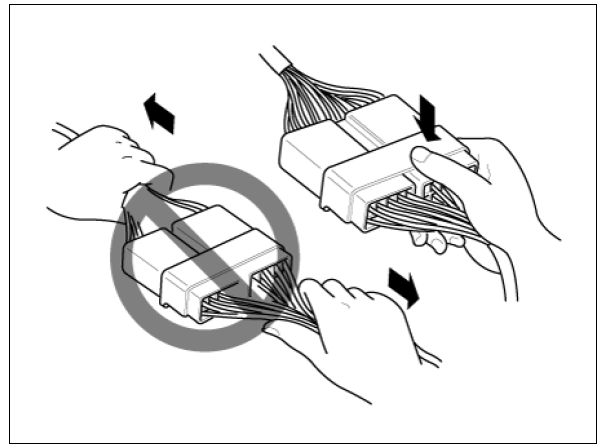

a. Never pull on the wiring harness when disconnecting connectors.

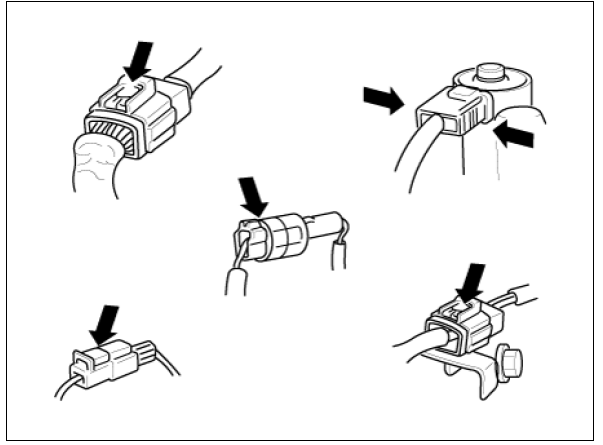

b. When removing the connector with a lock, press or pull locking lever.

b. When removing the connector with a lock, press or pull locking lever.

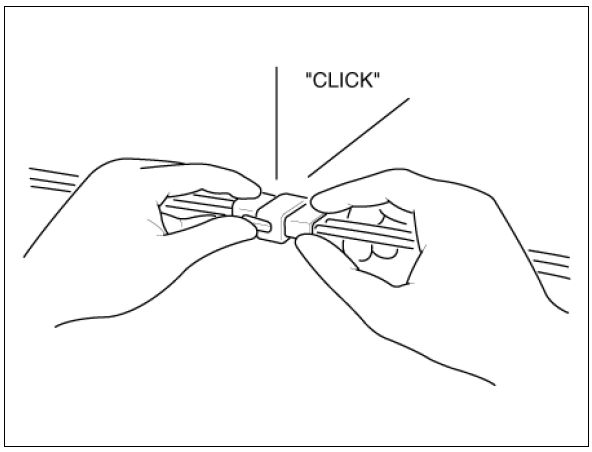

c. Listen for a click when locking connectors. This sound indicates that they

c. Listen for a click when locking connectors. This sound indicates that they are securely locked.

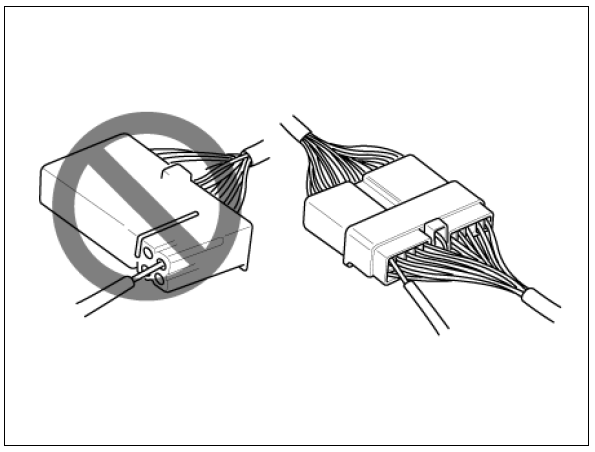

d. When a tester is used to check for continuity, or to measure voltage,

d. When a tester is used to check for continuity, or to measure voltage, always insert tester probe from wire harness side.

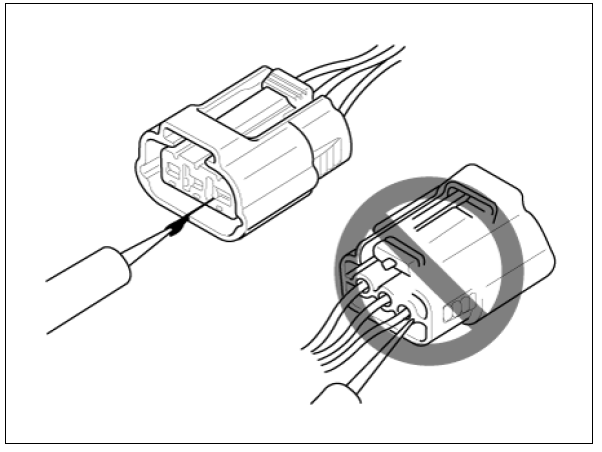

e. Check waterproof connector terminals from the connector side. Waterproof

e. Check waterproof connector terminals from the connector side. Waterproof connectors cannot be
accessed from harness side.

Warning

Warning

  • Use a fine wire to prevent damage to the terminal.
  • Do not damage the terminal when inserting the tester lead.
  1. Checking Point for Connector

a. While the connector is connected:

Hold the connector, check connecting condition and locking efficiency.

b. When the connector is disconnected:

Check missed terminal, crimped terminal or broken core wire by slightly pulling the wire harness.

Visually check for rust, contamination, deformation and bend.

c. Check terminal tightening condition:

Insert a spare male terminal into a female terminal, and then check terminal tightening conditions.

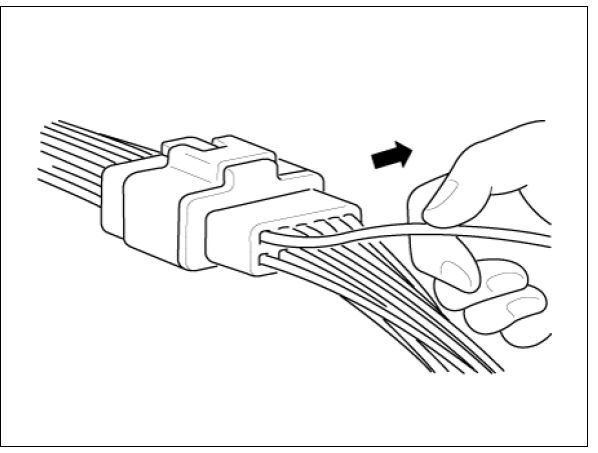

d. Pull lightly on individual wires to ensure that each wire is secured in the terminal.

3. Repair Method of Connector Terminal

3. Repair Method of Connector Terminal

a. Clean the contact points using air gun and/or shop rag.

Warning

Never use sand paper when polishing the contact points, otherwise the contact point may be damaged.

b. In case of abnormal contact pressure, replace the female terminal.

Wire Harness Inspection Procedure

  1. Before removing the wire harness, check the wire harness position and crimping in order to restore it correctly.
  2. Check whether the wire harness is twisted, pulled or loosened.
  3. Check whether the temperature of the wire harness is abnormally high.
  4. Check whether the wire harness is rotating, moving or vibrating against the sharp edge of a part.
  5. Check the connection between the wire harness and any installed part.
  6. If the covering of wire harness is damaged; secure, repair or replace the harness.
