KIA Niro: User settings mode

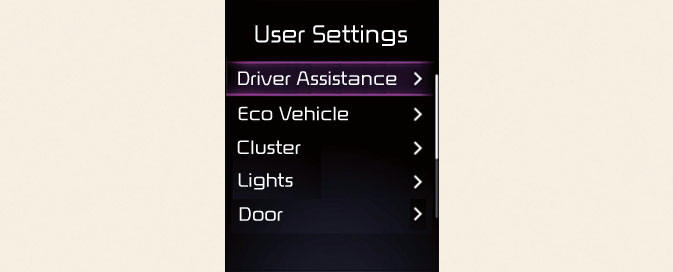

In this mode, you can change the settings of the instrument cluster, doors, lights, etc.
* The information provided may differ depending on which functions are applicable to your vehicle.

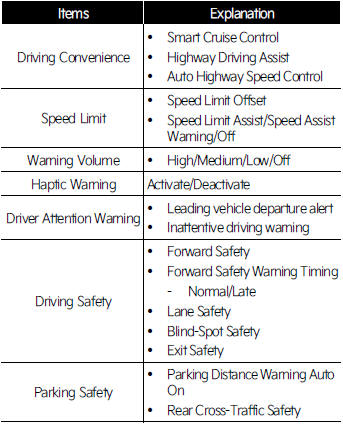

- Driver Assistance (if equipped)

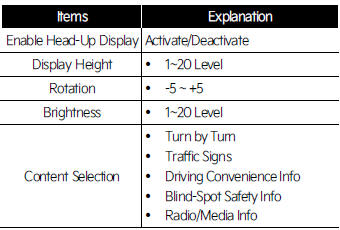

- Head-Up Display (if equipped)

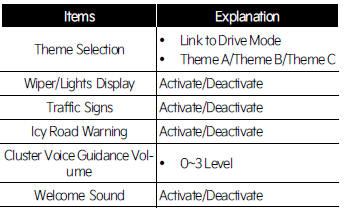

- Cluster (if equipped)

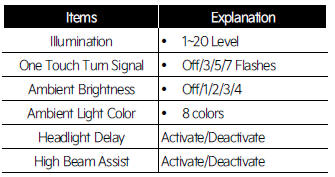

- Lights (if equipped)

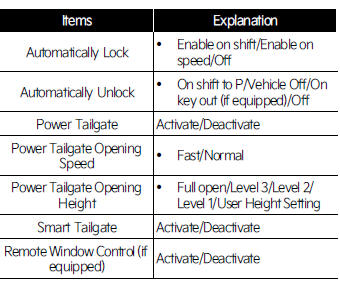

- Door (if equipped)
INFORMATION
Automatically Lock
- Enable On Shift: All doors will be
automatically unlocked when the
vehicle is shifted to P (Park) to R
(Reverse), N (Neutral), or D (Drive).
(With the Engine ON, it is activated.)
- Enable On Speed: All doors will be automatically locked when the vehicle speed is over 15 km/h (9 mph).
Automatically Unlock
- On Shift to P: All doors will be
automatically unlocked if the gear
is shifted to the P (Park) position.
(With the Engine ON, it is activated.)
- Vehicle Off/On key out (if equipped): All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the ENGINE START/STOP button is set to the OFF position.

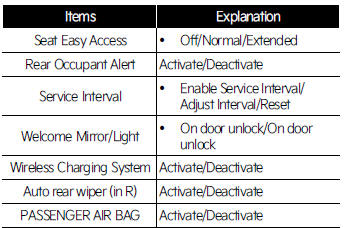

- Convenience (if equipped)

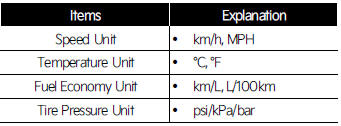

- Units
- Language
- Reset
