KIA Niro: LCD display messages (Kia Niro EV)

* For EV warning messages, refer to "LCD display messages"

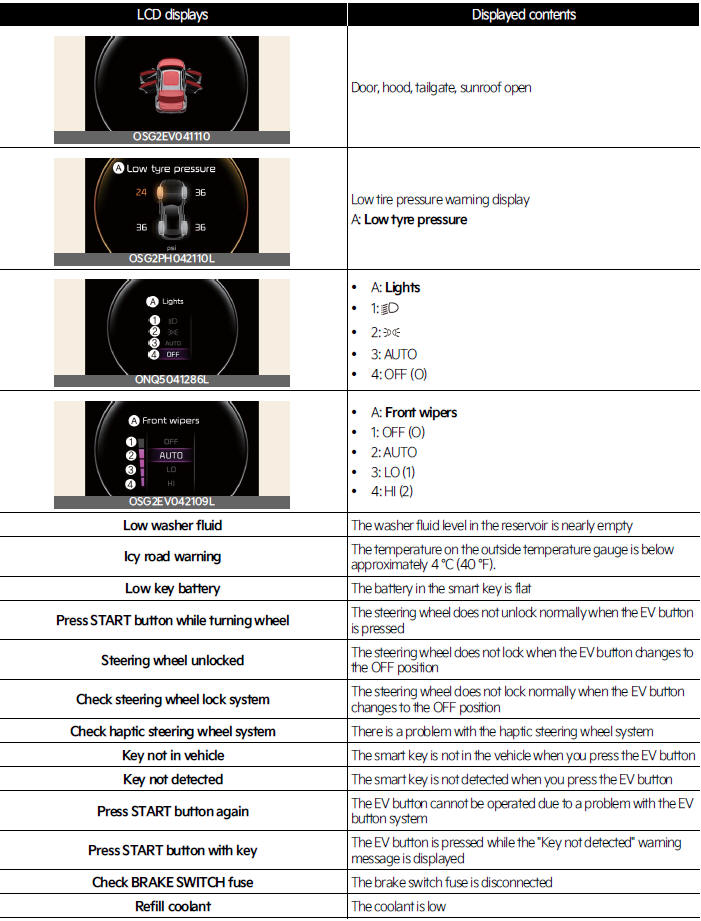

LCD displays / Displayed contents

Door, hood, tailgate, sunroof open

Low tire pressure warning display

A: Low tyre pressure

A: Lights

• 1:
• 2:
• 3: AUTO
• 4: OFF (O)

A: Front wipers

• 1: OFF (O)
• 2: AUTO
• 3: LO (1)
• 4: HI (2)

Low washer fluid/ The washer fluid level in the reservoir is nearly empty

Icy road warning/ The temperature on the outside temperature gauge is below approximately 4 ºC (40 ºF).

Low key battery/ The battery in the smart key is flat

Press START button while turning wheel/ The steering wheel does not unlock normally when the EV button is pressed

Steering wheel unlocked/ The steering wheel does not lock when the EV button changes to the OFF position

Check steering wheel lock system/ The steering wheel does not lock normally when the EV button changes to the OFF position

Check haptic steering wheel system/ There is a problem with the haptic steering wheel system

Key not in vehicle/ The smart key is not in the vehicle when you press the EV button

Key not detected / The smart key is not detected when you press the EV button

Press START button again/ The EV button cannot be operated due to a problem with the EV button system

Press START button with key/ The EV button is pressed while the "Key not detected" warning message is displayed

Check BRAKE SWITCH fuse/ The brake switch fuse is disconnected

Refill coolant/  The coolant is low

INFORMATION

• If there is no problem with the operation and the messages above are constantly displayed, have your vehicle inspected by a professional workshop.

  Kia recommends to contact an authorized Kia dealer/service partner.

• Press START button again

• You could start the vehicle by pressing the EV button once more.
• If the warning message is displayed each time you press the EV button, have the vehicle inspected by a professional workshop. Kia recommends visiting an authorized Kia dealer/service partner.

• Check BRAKE SWITCH fuse

• You need to replace the fuse with a new one before starting the vehicle.
• If that is not possible, you can start the vehicle by pressing the EV button for 10 seconds in the ACC position.

NOTICE

• Some driving information stored in the trip computer resets if the battery is disconnected.
• If any of the following conditions occurs, the mileage and days may be incorrect.

• The battery cable is disconnected.
• The battery is discharged.

• If sunroof open warning is displayed in the cluster, the Driving Information message may not be displayed.
• To set the charging time and/or climate time, refer to the manual provided in the infotainment system and the quick reference guide.
• If the icy road warning appears while driving, you should drive more attentively and safely refraining from overspeeding, rapid acceleration, sudden braking or sharp turning, etc.
