KIA Niro: Curtain air bag

KIA Niro EV, Hybrid - Second generation - (SG2) (2021-2024) - Owner's manual / Safety features of your vehicle / Air bag - supplemental restraint system / Curtain air bag

Curtain air bag

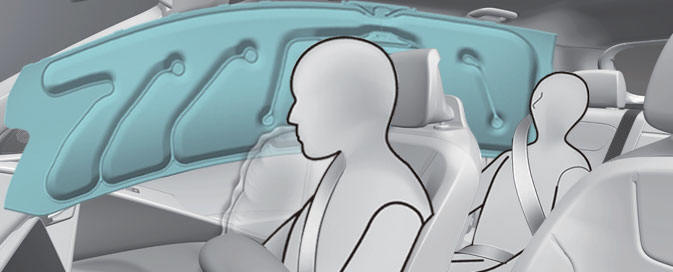

* The actual air bags in the vehicle may differ from the illustration.

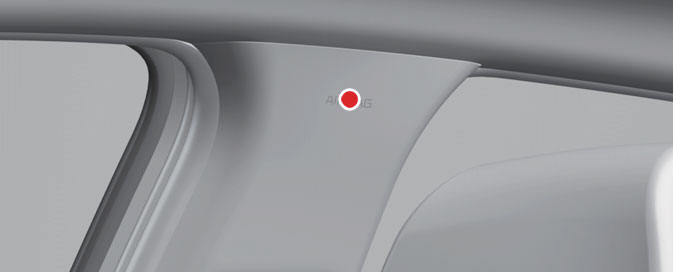

Curtain air bags are located along both sides of the roof rails above the front and rear doors.

They are designed to help protect the heads of the front seat occupants and the rear seat occupants in certain side impact collisions.

The curtain air bags are designed to deploy during certain side impact collisions, depending on the crash severity.

The curtain air bags are not designed to deploy in all side impact situations, collisions from the front or rear of the vehicle or in most rollover situations.

WARNING

Failure to follow the instructions mentioned can result in injury or death to the vehicle occupants in an accident.

Do not hang heavy items on the coat hooks for safety reasons.
In order for side and curtain air bags to provide the best protection, both front seat occupants and both outboard rear occupants should sit in an upright position with the seat belts properly fastened.
Importantly, children should sit in a proper child restraint system in the rear seat.
When children are seated in the rear outboard seats, they must be seated in the proper child restraint system.
Make sure to put the child restraint system as far away from the door side as possible, and secure the child restraint system in a locked position.
Do not allow the passengers to lean their heads or bodies onto doors, put their arms on the doors, stretch their arms out of the window, or place objects between the doors and passengers when they are seated on seats equipped with side and/or curtain air bags.
Never try to open or repair any components of the curtain air bag system. If necessary, have the system serviced by a professional workshop. Kia recommends to visit an authorized Kia dealer/service partner.

Do not place any objects over the air bag. Also, do not attach any objects around the area the air bag inflates such as the door, side door glass, front and rear pillar, roof side rail.
Do not hang hard or breakable objects on the clothes hanger.

NOTICE

If equipped with rollover sensor

Also, the air bags inflate instantly in the event of a rollover (if equipped with a side air bag or curtain air bag) in order to help protect the occupants from serious physical injury.

Air bag collision sensors

* The actual features in your vehicle may not necessarily be available due to the selected options or regions. Supplemental Restraint System (SRS) control module/rollover sensor Front impact sensor Side pressure sensors (front door)

Air bag non-inflation conditions

WARNING The SRS is designed to deploy the front air bags only when an impact is sufficiently severe and when the impact angle is less than 30� from the forward longitudinal axis of the vehicle. Front air bags are not intended to

Additional safety precautions

Never let passengers ride in the cargo area or on top of a foldeddown back seat. All occupants should sit upright, fully back in their seats with their seat belts on and their feet on the floor. Passengers should not move out of or c
