KIA Niro: Motor room compartment (Kia Niro EV only)

KIA Niro EV, Hybrid - Second generation - (SG2) (2021-2024) - Owner's manual / Your vehicle at a glance / Motor room compartment (Kia Niro EV only)

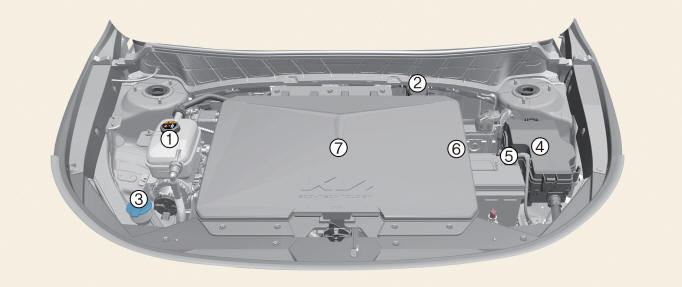

Motor room compartment ( Information is inherent only Kia Niro EV)

  1. Coolant reservoir
  2. Brake fluid reservoir

* This part is located on the opposite side for Right-hand drive vehicle.

  1. Windshield washer fluid reservoir
  2. Fuse box
  3. Negative battery terminal (-)
  4. Positive battery terminal (+)
  5. Front trunk
