KIA Niro: Reverse Parking Distance Warning settings

KIA Niro EV, Hybrid - Second generation - (SG2) (2021-2024) - Owner's manual / Driving your vehicle / Reverse Parking Distance Warning (PDW) / Reverse Parking Distance Warning settings

Reverse Parking Distance Warning (PDW) (if equipped)

Reverse Parking Distance Warning will help warn the driver if a person, an animal or an object is detected within a certain distance when the vehicle is moving in reverse.

Detecting sensor

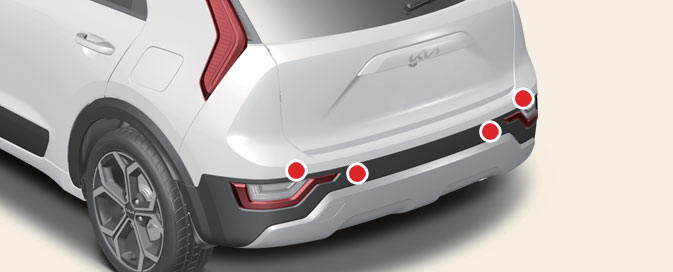

Rear ultrasonic sensors

Refer to the picture above for the detailed location of the detecting sensors.

Reverse Parking Distance Warning settings

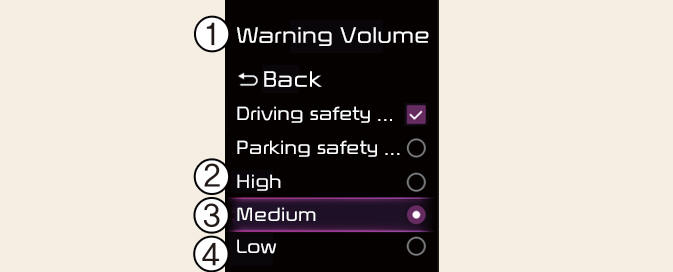

Warning volume

Warning volume

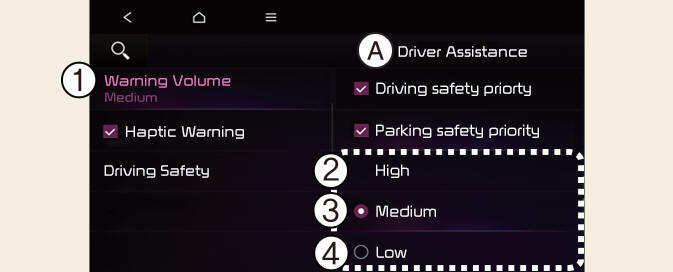

A: Driver Assistance

Warning Volume
High
Medium
Low
Off (If steering wheel vibration function is equipped)

With the vehicle on, touch Settings ? Driver Assistance ? Warning Volume on the instrument cluster or Settings ? Vehicle ? Driver Assistance ? Warning Volume on the infotainment system to change the Warning volume to adjust the Warning volume levels; High, Medium, Low or Off.

CAUTION

When the trailer is connected, Reverse Parking Distance Warning Assist automatically turns off (if equipped). In this case, you cannot get help from Reverse Parking Distance Warning. Always drive with care.

NOTICE

If the vehicle is restarted, Warning volume will maintain the last setting.
If Off is selected, the Warning volume of Reverse Parking Distance Warning will not turn off, but the volume will sound as Low.
If Off is selected, steering wheel vibration (if equipped) will not turn off.
If you change the Warning volume, the Warning volume of other Driver Assistance systems may change.

Reverse Parking Distance Warning operation

Parking Safety button (if equipped) Press the Parking Safety ( ) button to turn on or off Reverse Parking Distance Warning. When Reverse Parking Distance Warning is off (button indicator light off), if you shift the gear to R (Reve

Reverse Parking Distance Warning malfunction and precautions

Reverse Parking Distance Warning malfunction After starting the vehicle, a beep will sound once when the gear is shifted to R (Reverse) to indicate Reverse Parking Distance Warning is operating normally. However, if one or more of the followin
