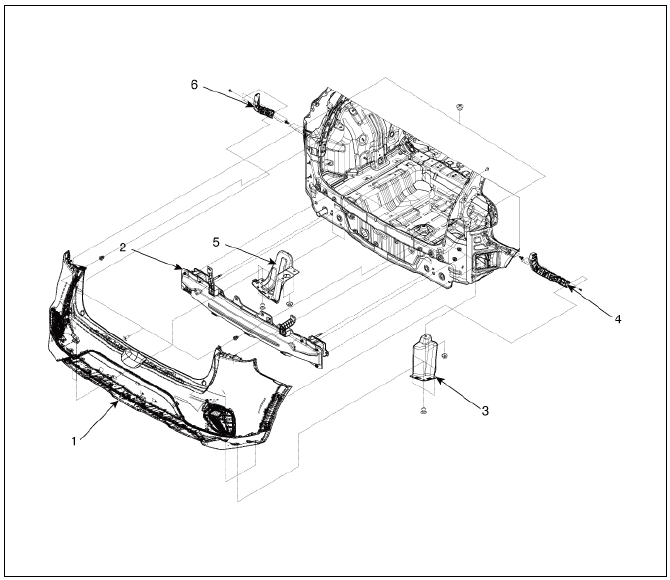

Rear bumper cover assembly
Rear bumper beam assembly
Rear bumper side under cover (RH)
Rear bumper side bracket (RH)
Rear bumper side under cover (LH)
Rear bumper side bracket (LH)

Rear Bumper Assembly

Rear bumper assembly Replacement Warning Put on gloves to protect your hands. Warning Use a plastic panel removal tool to remove interior trim pieces without marring the surface. Be careful not to bend or scratch the trim and pa

Rear Bumper beam Assembly

Rear bumper beam assembly Replacement Warning Put on gloves to protect your hands. Warning Use a plastic panel removal tool to remove interior trim pieces without marring the surface. Be careful not to bend or scratch the trim a
