KIA Niro: Forward Collision-Avoidance Assist (FCA) (Sensor Fusion) (if equipped)

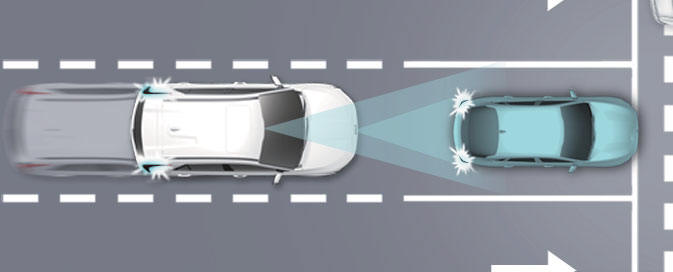

Basic function
Forward Collision-Avoidance Assist is designed to help detect and monitor the vehicle ahead or help detect a powered two-wheeler, pedestrian or cyclist in the roadway and warn the driver that a collision is imminent with a warning message and warning and apply emergency braking.

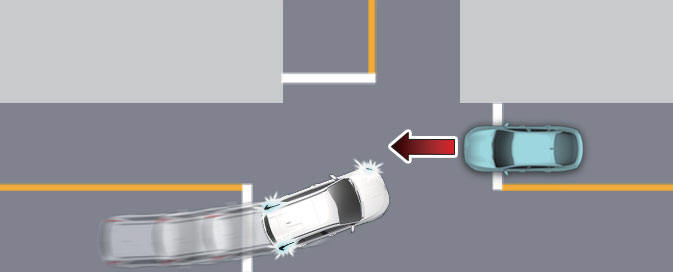

Junction Turning function
Junction Turning function can help avoid a collision with an oncoming vehicle in an adjacent lane when turning left (lefthand drive) or right (right-hand drive) at a crossroad with the turn signal on by applying emergency braking.

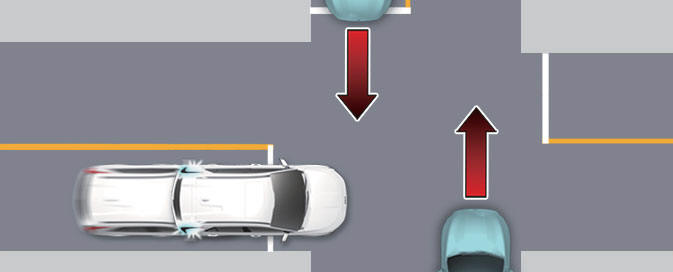

Junction Crossing function (if equipped)
Junction Crossing function will help avoid a collision with oncoming vehicles on the left or right side when crossing an intersection by applying emergency braking.

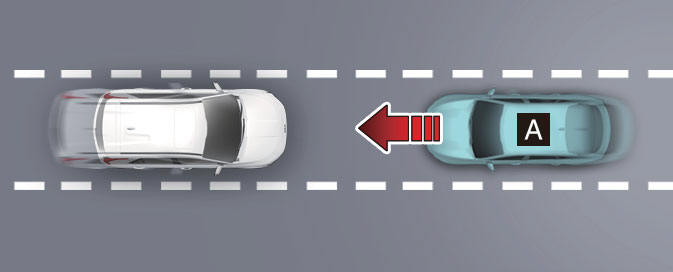

Direct Oncoming response function (if equipped)
[A] : Oncoming vehicle
Direct Oncoming function helps reduce the speed at the collision when with a vehicle approaching from the opposite side is detected.

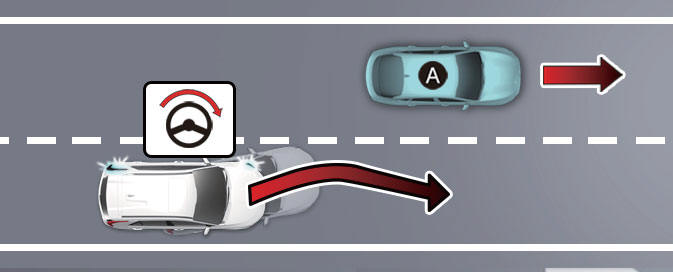

Lane-Change Oncoming function (if equipped)
[A] : Oncoming vehicle
Lane-Change Oncoming function will help avoid a collision with an oncoming vehicle when changing lanes by assisting the driver's steering.

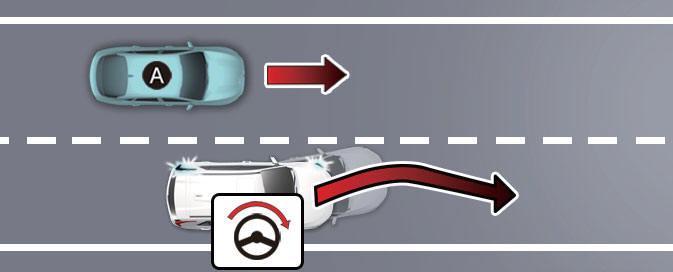

Lane-Change Side function (if equipped)
[A]: Front-side vehicle
Lane-Change Side function will help avoid a collision with the vehicle ahead in the next lane when changing lanes by assisting the driver's steering.

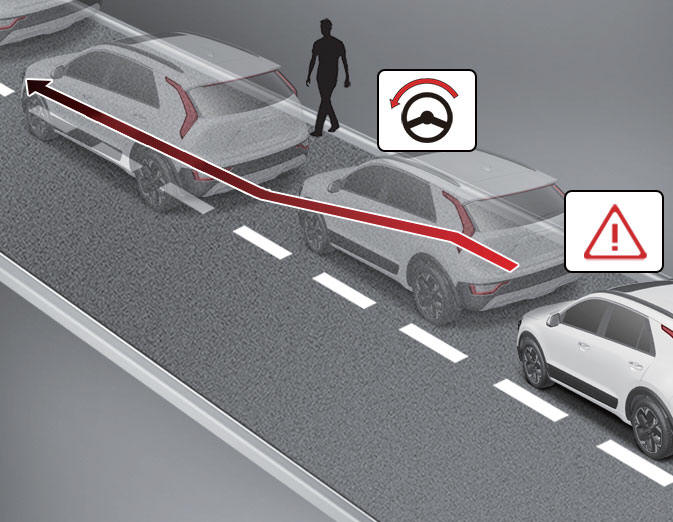

Evasive Steering Assist function (if equipped)
- Driver steering assist
Evasive Steering Assist function will help avoid a collision with a vehicle, pedestrian or cyclist ahead in the same lane. When a risk of collision is detected, Evasive Steering Assist function will warn the driver and if the driver steers to avoid collision it will assist the driver's steering.
- Evasive steering assist Evasive Steering Assist function helps avoid a collision with a pedestrian or cyclist ahead in the same lane. When a risk or collision is detected, Evasive Steering Assist function will warn the driver and if there is space to avoid collision in the lane, it will assist the driver's steering.
