KIA Niro: Specifications & Consumer information (Kia NIRO Hybrid)

KIA Niro EV, Hybrid - Second generation - (SG2) (2021-2024) - Owner's manual / Specifications & Consumer information / Specifications & Consumer information (Kia NIRO Hybrid)

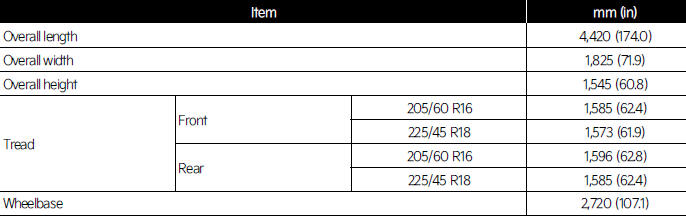

Dimensions

Dimensions

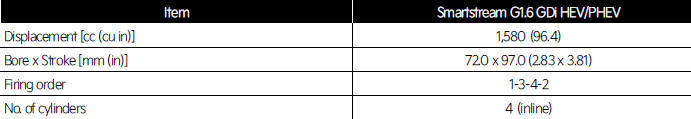

Engine

Engine

Gross vehicle weight

Gross vehicle weight

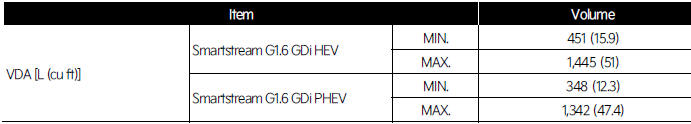

Luggage volume

Min: Behind rear seat to upper edge of the of the seatback
Max: Behind front seat to roof

Luggage volume

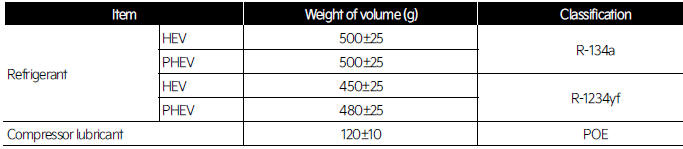

Air conditioning system

Please contact a professional workshop for more details. Kia recommends to contact an authorized Kia dealer/service partner.

Air conditioning system

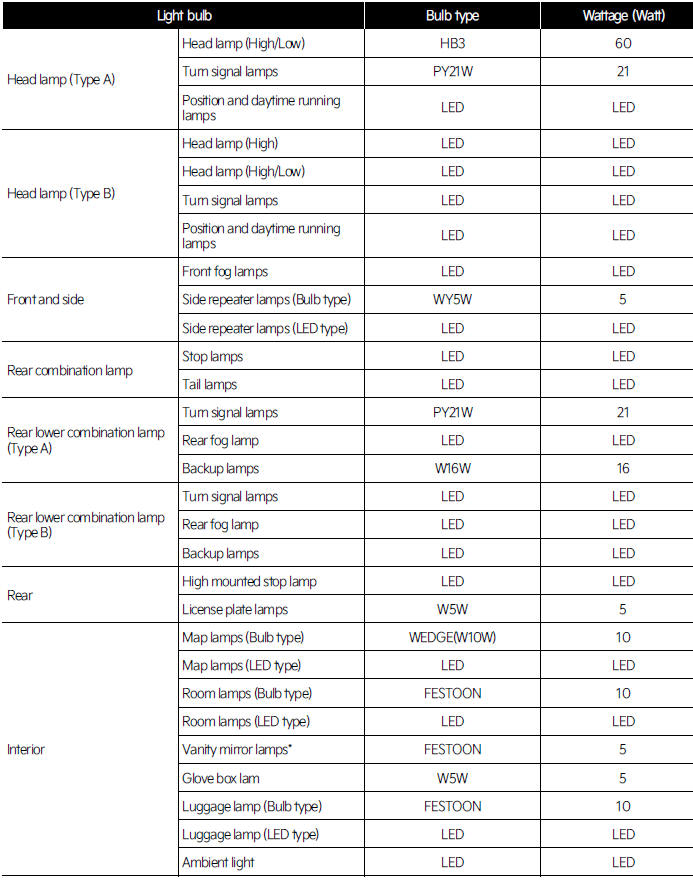

Bulb wattage

* : if equipped

Bulb wattage

Specifications & Consumer information (Kia Niro EV)

Dimensions Electric vehicle specifications OBC: On-Board Battery Chargers Volume and weight Available front trunk weight Air conditioning system Please contact a professional workshop for more details. Kia recommends to co

Tires and wheels

(Kia Niro EV / Hybrid) *1. Load Index *2. Speed Symbol CAUTION When replacing tires, use the same size originally supplied with the vehicle. Using tires of a different size can damage the related parts or make it work irregularly. NOTI

Vehicle Identification

Vehicle Identification Number (VIN) Kia NIRO Hybrid Type A - For hybrid vehicle Type A - For plug-in hybrid vehicle Type B Kia Niro EV Type A Type B The Vehicle Identification Number (VIN) is the number used in registering your
