KIA Niro: Vehicle Identification
Vehicle Identification Number (VIN)
Kia NIRO Hybrid
Type A - For hybrid vehicle
Type A - For plug-in hybrid vehicle
Type B
Kia Niro EV
Type A
Type B
The Vehicle Identification Number (VIN) is the number used in registering your vehicle and in all legal matters pertaining to its ownership, etc.

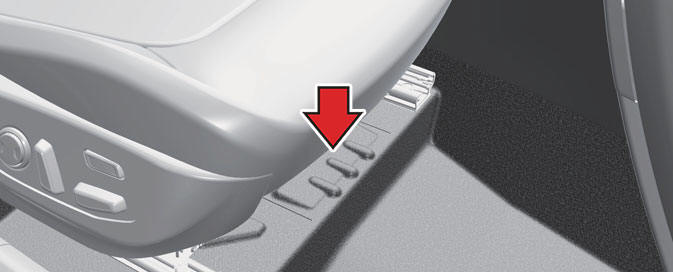

- Type A: Engraved on the floor under the front left or right seat. Open the cover to check the VIN.

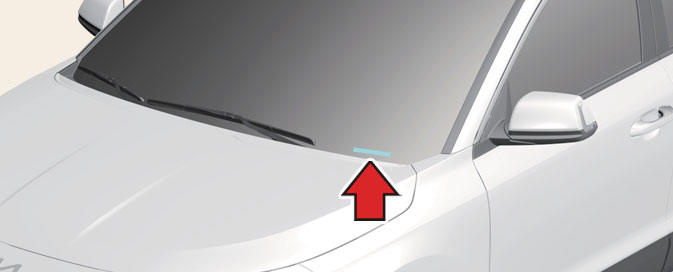

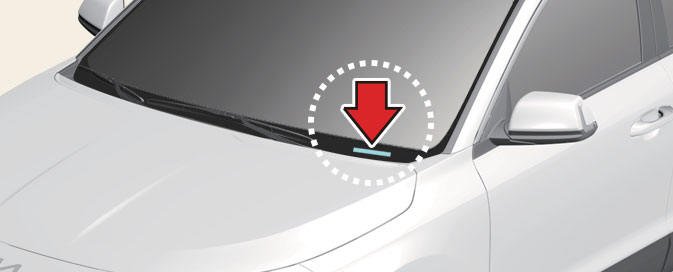

- Type B: Written on a plate attached to the top left or top right of the dashboard through the front windshield.
Vehicle certification label (if equipped)
Type A
Type B

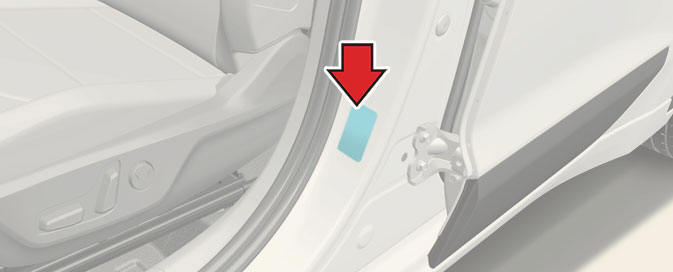

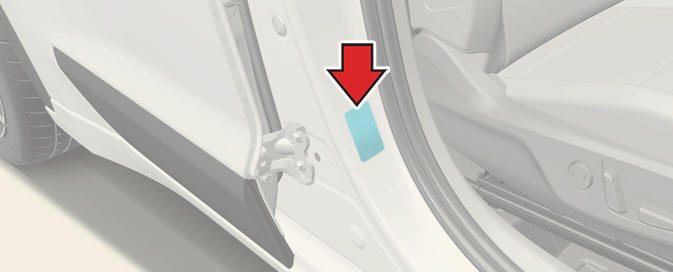

The vehicle certification label attached on the center pillar as shown gives the vehicle identification number (VIN).
