KIA Niro: Smart Key System
Specifications
Smart Key Unit
RF Receiver

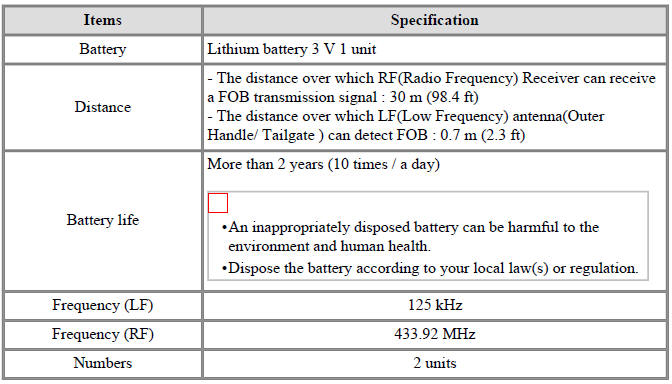

Smart Key
Antenna
Smart Key System / Components And Components Location

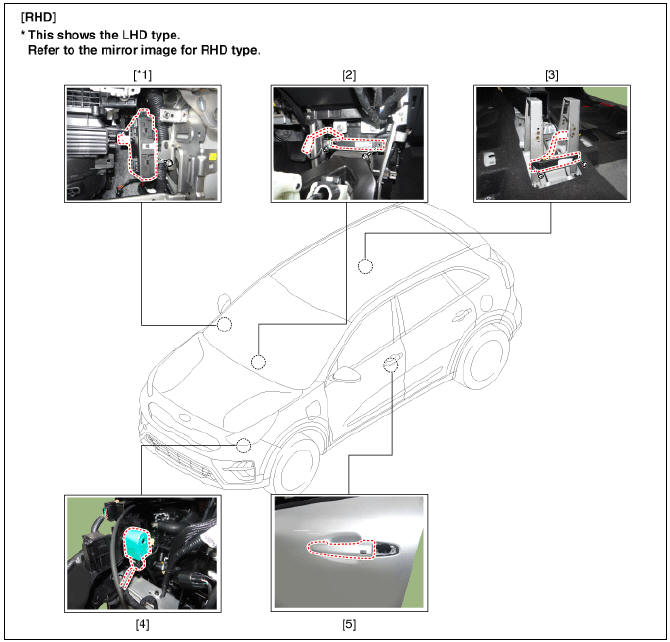

Component Location (1)
- Smart key unit (SMK)
- Interior antenna 1
- Interior antenna 2
- Buzzer
- Door outside handle / Door antenna

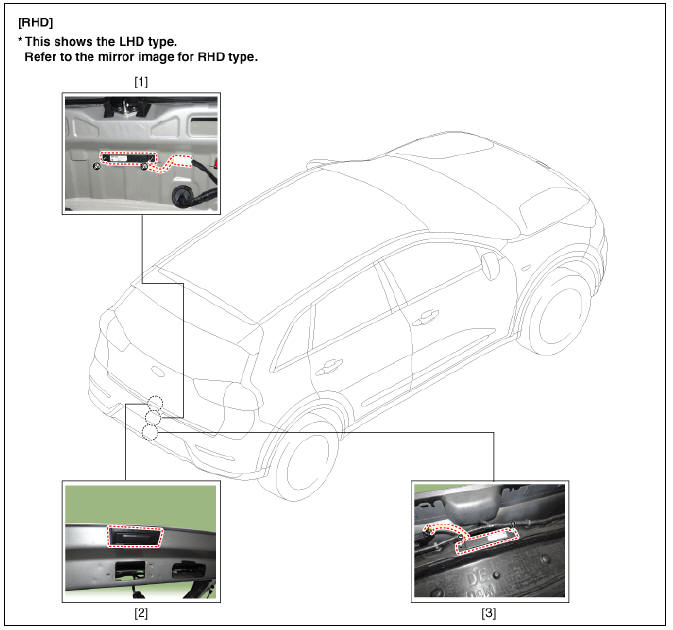

Component Location (2)
- Tailgate antenna
- Tailgate lid handle
- Bumper antenna
- Smart Key System / Description And Operation
- Smart Key Repair procedures, Smart Key Unit
- Smart Key Diagnostic Repair procedures
