KIA Niro: Operating the fog lights (if equipped)

KIA Niro EV, Hybrid - Second generation - (SG2) (2021-2024) - Owner's manual / Features of your vehicle / Lighting / Operating the fog lights (if equipped)

Type A
Type A

Type B
Type B

Type C
Type C

Operation

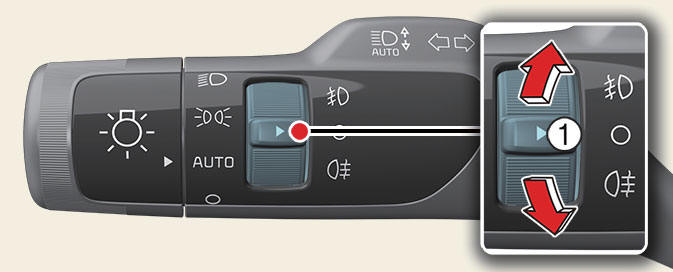

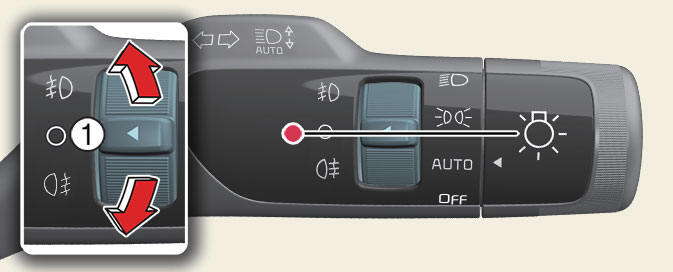

Turn the fog light switch (1) to the dedicated position.
Front: ( )
Rear: ( )

Operating condition(s)

The headlamps are turned ON.

CAUTION

When in operation, the fog lights consume large amounts of vehicle electrical power. Only use the fog lights when visibility is poor.

Operating the high-beam headlamps

Type A
Type A

Type B
Type B

Type C
Type C

Operation

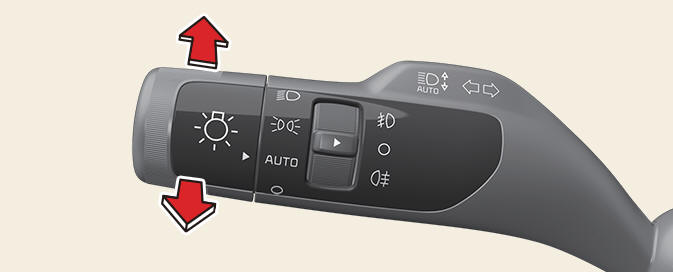

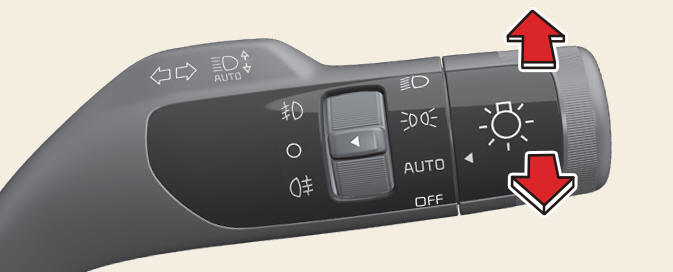

Push the lever to use high beam.
Pull the lever towards you to flash the headlights ( ).

WARNING

Do not use high beam when there are other vehicles. Using high beam could obstruct the other driver's vision.

NOTICE

If you push the lever away from you, the lever will return to its original position.
The high beam indicator will light when the headlight high beams are switched on.
It will return to the normal (low beam) position when released after pulling the lever towards you. The headlight switch does not need to be on to use this flashing feature.

High Beam Assist (HBA)

High Beam Assist (HBA) (if equipped) (Kia NIRO Hybrid) High Beam Assist is a function that automatically adjusts the headlamp range (switches between high beam and low beam) depending on the brightness of detected vehicles and certain road c

High Beam Assist Malfunction and limitations

High Beam Assist Malfunction A: Check HBA (High Beam Assist) system When High Beam Assist is not working properly, the warning message will appear and warning light ( ) will appear on the cluster. We recommend that you have your vehicle i
