KIA Niro: Interior overview

KIA Niro EV, Hybrid - Second generation - (SG2) (2021-2024) - Owner's manual / Your vehicle at a glance / Interior overview

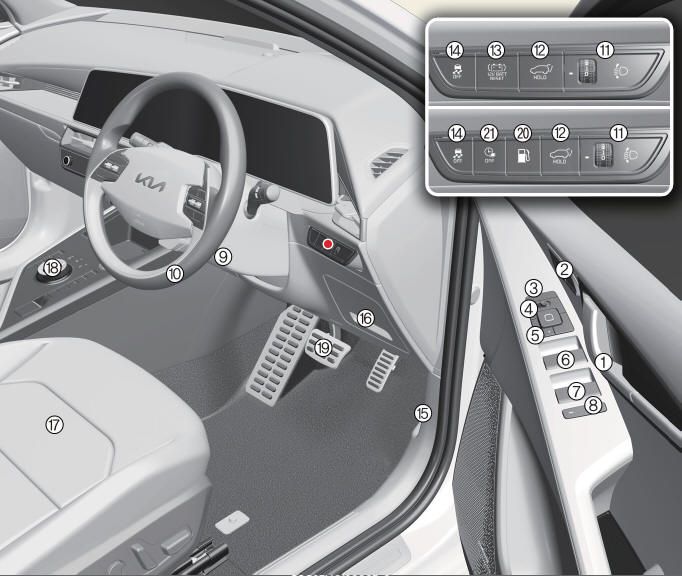

Left-hand drive ( Kia NIRO Hybrid)
Left-hand drive (Kia NIRO Hybrid)

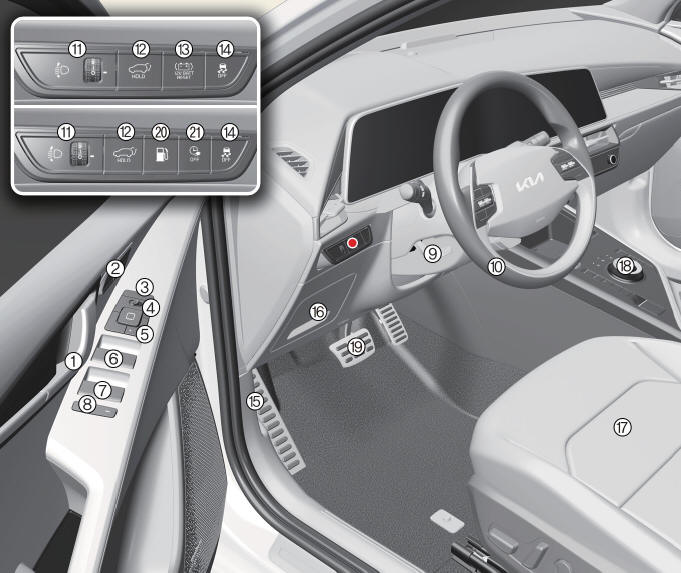

Right-hand drive ( Kia NIRO Hybrid)
Right-hand drive (Kia NIRO Hybrid)

  1. Inside door handle
  2. Seat position memory system
  3. Outside rearview mirror folding switch
  4. Outside rearview mirror control switch
  5. Central door lock/unlock switch
  6. Power window switches (Front)
  7. Power window switches (Rear)
  8. Power window lock button/Electronic child lock button
  9. Steering wheel tilt/telescopic lever
  10. Steering wheel
  11. Headlight leveling adjustment switch
  12. Tailgate unlock button
  13. 12V battery reset button
  14. ESC OFF button
  15. Hood release lever
  16. Instrument panel fuse
  17. Seat
  18. Shift dial
  19. Brake pedal
  20. Fuel door open
  21. Charging deactivation button

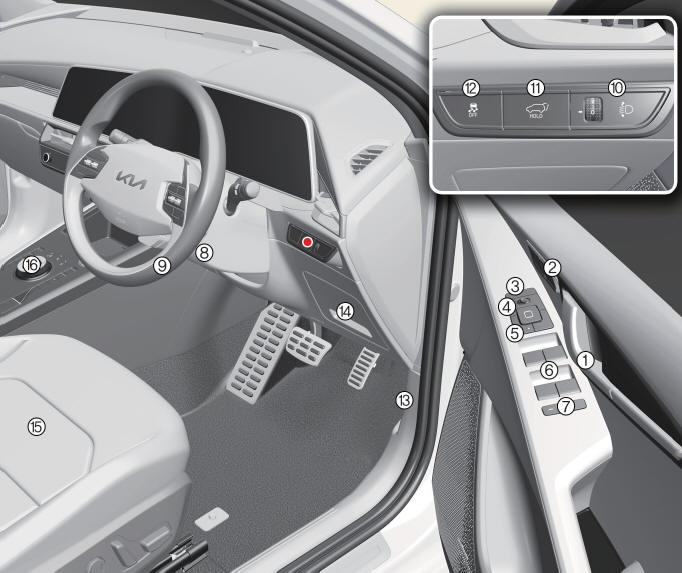

Left-hand drive ( Kia Niro EV)
Left-hand drive (Kia Niro EV)

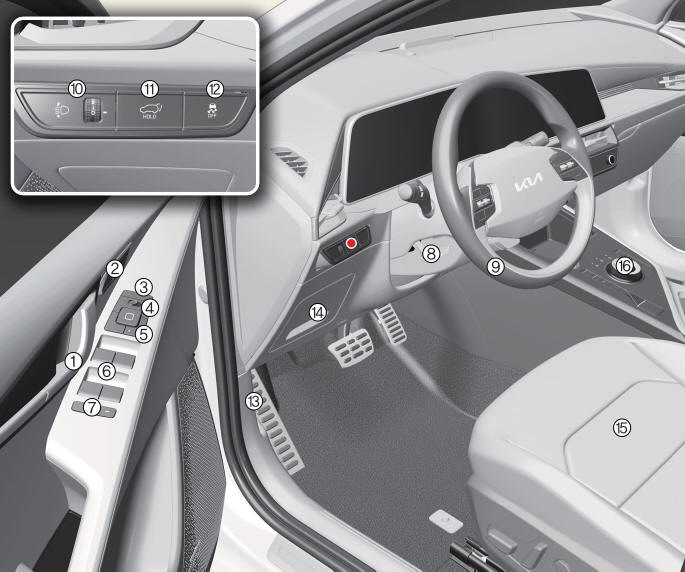

Right-hand drive ( Kia Niro EV)
Right-hand drive (Kia Niro EV)

  1. Inside door handle
  2. Driver position memory system
  3. Outside rearview mirror folding switch
  4. Outside rearview mirror control switch
  5. Central door lock/unlock switch
  6. Power window switches
  7. Power window lock/Electronic power child safety lock button
  8. Steering wheel tilt/telescopic lever
  9. Steering wheel
  10. Headlamp leveling adjustment switch
  11. Power tailgate open/close button
  12. ESC OFF button
  13. Hood release lever
  14. Instrument panel fuse
  15. Seat
  16. Reduction gear (shifter dial)
