KIA Niro: Heated Steering wheel

Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Steering System / Steering wheel / Heated Steering wheel

Description

When manually selected, the heated steering wheel system improves the thermal comfort of the driver by heating the steering wheel.

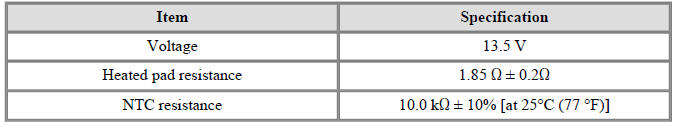

Specifications

Specifications

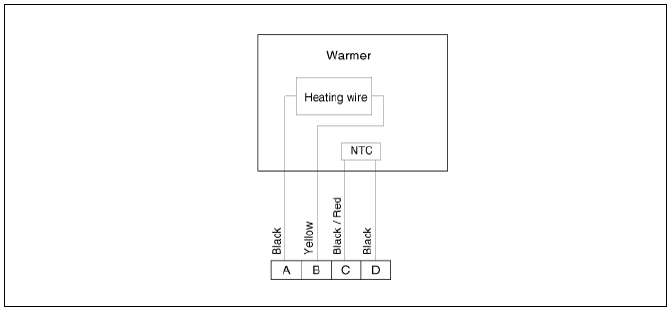

System Circuit Diagram

System Circuit Diagram

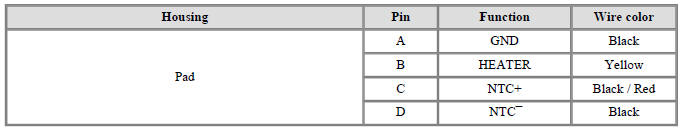

Terminal Function

Terminal Function

Inspection

Inspection

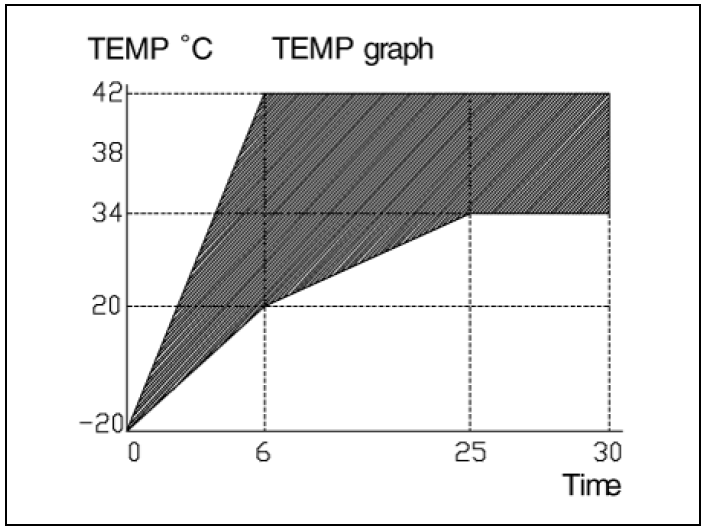

NTC characteristic

Measure the resistance of NTC and Heated pad.

NTC resistance : 10 kΩ +-10 % Heated pad resistance : 1.85 +- 0.2 Ω

Measure the temperature.

The temperature of wheel surface must rise from -20ºC to 20ºC in 6 minutes.
The temperature of wheel surface must reach 38ºC in 25 minutes.

Restraint

Restraint - General information

General The supplemental restraint system (SRS) is designed to supplement the seat belt to help reduce the risk or severity of injury to the driver and passenger by activating and deploying the driver, passenger, side airbag and belt pretensio

General safety information and caution

Precautions General Precautions Please read the following precautions carefully before performing the airbag system service. Observe the instructions described in this manual, or the airbags could accidentally deploy and cause damage or injur
