KIA Niro: Front View Camera Unit - Removal
Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Advanced Driver Assistance System (ADAS) / Front View Camera Unit - Removal
Inspection
- In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (KDS).
The diagnostic system (KDS) provides the following information.
(1) Self diagnosis : Checking failure and code number (DTC).
(2) Current data : Checking the system input/output data state.
(3) Actuation test : Checking the system operation condition.
(4) Additional function : Controlling other features including system option setting and zero point adjustment.
Removal

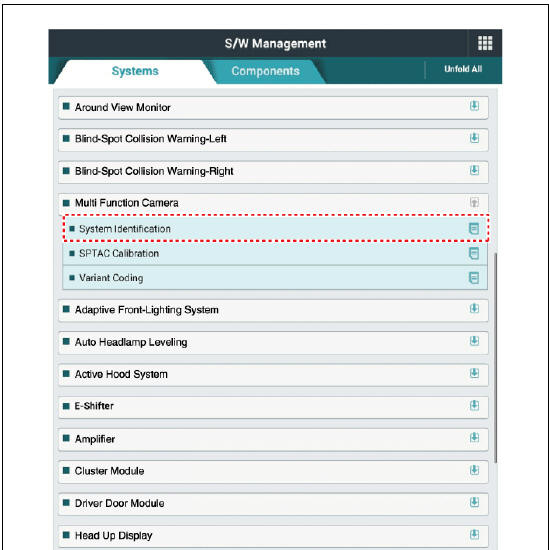

- If the front view camera unit needs to be replaced, check the system identification by using the KDS.
- Disconnect the negative battery terminal.

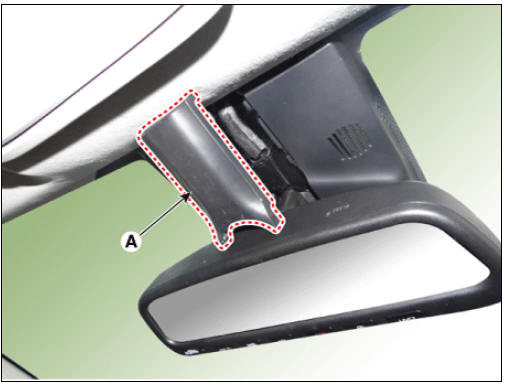

- Remove the inside rear view mirror cover (A).

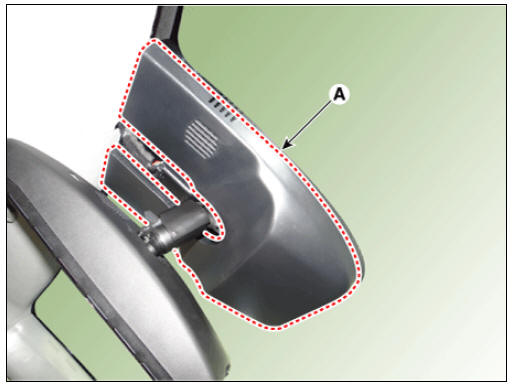

- Remove the camera unit cover (A).

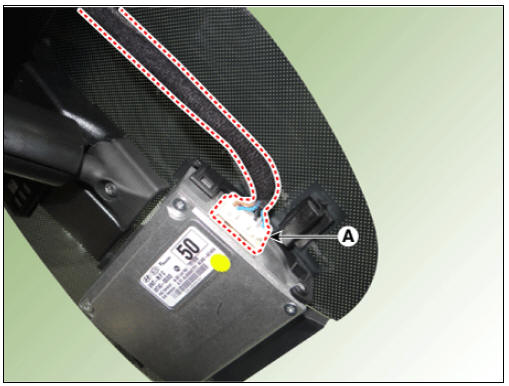

- Disconnect the front view camera unit connector (A).

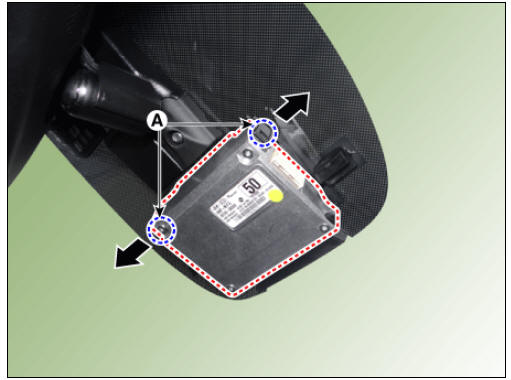

- Remove the front view camera unit (A) by releasing the hooks.
Installation
- Install in the reverse order of removal.

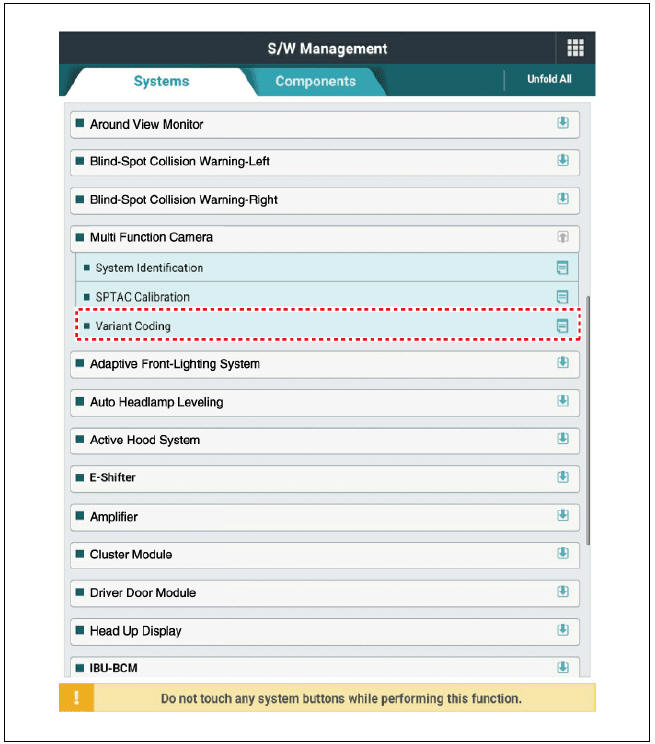

- When if replacing the front view camera with a new one, perform the "Variant Coding" procedure by using the KDS.
- Perform the front view camera unit calibration.
(Refer to Front View Camera Unit - "Adjustment")
Adjustment
Warning
Perform the camera calibration in the following case.
- If the front view camera is replaced with a new one.
- If the front view camera is removed and mounted.
- If the front view camera coupler of the windshield glass is deformed.
- If the windshield glass is changed.
- When a failure code (System Out of Calibration) occur.
Check the procedure below before performing the camera calibration.
- Check for vehicle alignment and tire pressure for accurate camera calibration.
- Windshield must be clean and free of any dirt or object
