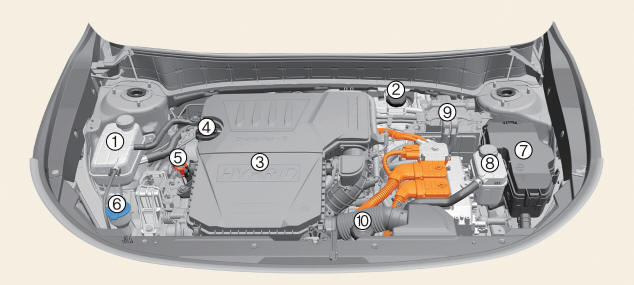

Smartstream G1.6 GDi HEV

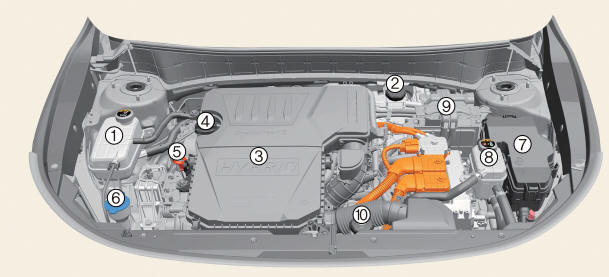

Smartstream G1.6 GDi PHEV

Engine coolant reservoir
Brake fluid reservoir
Air cleaner
Engine oil filler cap
Engine oil dipstick
Windshield washer fluid reservoir
Fuse box
Inverter coolant reservoir
Electric Control Unit (ECU)
Engine actuator reservoir tank

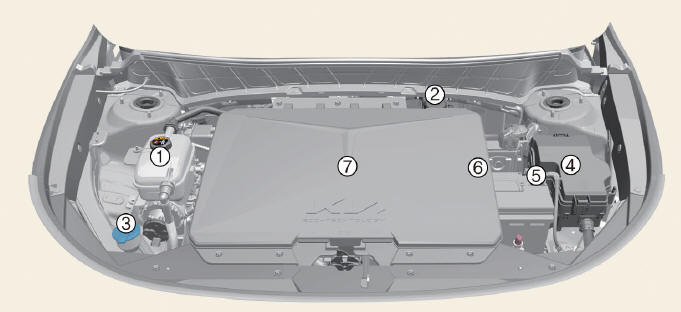

Motor room compartment (Kia Niro EV)

Motor room compartment (Kia Niro EV)

* The actual features in your vehicle may not necessarily be available due to the selected options or regions.

Coolant reservoir
Brake fluid reservoir

* This part is located on the opposite side for Right-hand drive vehicle.

Windshield washer fluid reservoir
Fuse box
Negative battery terminal (-)
Positive battery terminal (+)
Front trunk

Maintenance services

Owner's responsibility Have your vehicle serviced by a professional workshop. Kia recommends to visit an authorized Kia dealer/service partner. Retain documents that show proper maintenance. Establish your compliance with the se

Owner maintenance schedule

When you stop for charging Check the coolant level in the coolant reservoir. Check the windshield washer fluid level. Look for low or underinflated tires. WARNING Be careful when checking your coolant level when the motor compartment

Scheduled maintenance service (Kia NIRO Hybrid)
