KIA Niro: Cruise Control (CC)

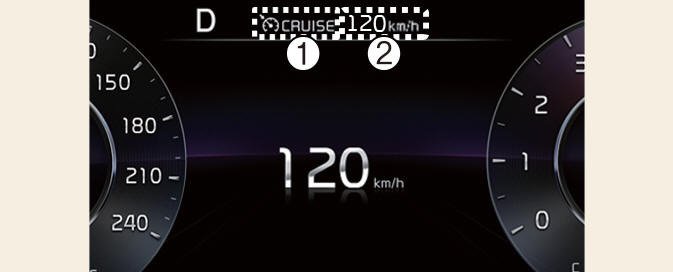

- Cruise indicator
- Set speed
Cruise Control will allow you to drive at speeds above 30 km/h (20 mph) without depressing the accelerator pedal.
Cruise Control operation
Setting speed
- Accelerate to the desired speed, which must be more than 30 km/h (20 mph).

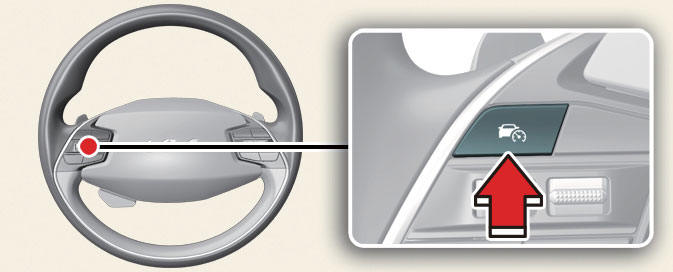

- Press the Driving Assist button at the
desired speed. The set speed and
Cruise (
) indicator will appear on the cluster.
- Release the accelerator pedal.
Vehicle speed will maintain the set speed even when the accelerator pedal is not depressed.
NOTICE
- The vehicle may slightly slow down or speed up while driving uphill or downhill.
- The Driving Assist button symbol may vary depending on your vehicle option.
Increasing set speed

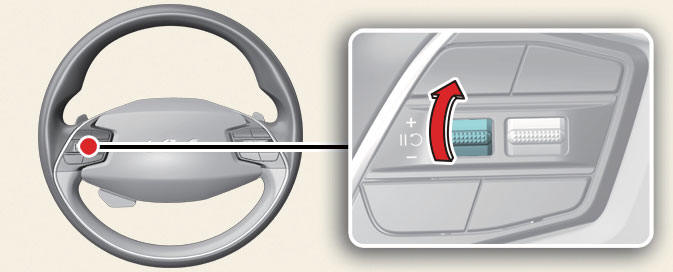

- Push the (+) switch up and release it immediately. The set speed will increase by 1 km/h (1 mph) each time the switch is operated in this manner.
- Push the (+) switch up and hold it
while monitoring the set speed on the
cluster. The set speed will increase to
the nearest multiple of 10 (multiple of
5 in mph) at first, and then increase
by 10 km/h (5 mph) each time the
switch is operated in this manner.
Release the switch when the desired speed is shown and the vehicle will accelerate to that speed.
Decreasing set speed

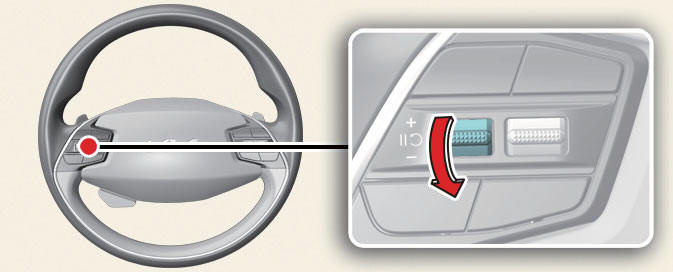

- Push the (-) switch down and release it immediately. The set speed will decrease by 1 km/h (1 mph) each time the switch is operated in this manner.
- Push the (-) switch down and hold it
while monitoring the set speed on the
cluster. The set speed will decrease to
the nearest multiple of 10 (multiple of
5 in mph) at first, and then decrease
by 10 km/h (5 mph) each time the
switch is operated in this manner.
Release the switch at the speed you want to maintain.
Accelerating temporarily
If you want to speed up temporarily when Cruise Control is on, depress the accelerator pedal.
To return to the set speed, take your foot off the accelerator pedal.
If you push the (+) switch up or (-) switch down at increased speed, the set speed will be set to the current increased speed.
Temporarily pausing Cruise Control

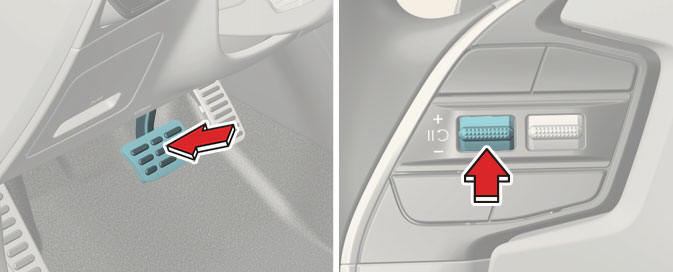

Cruise Control will be paused when:
- Depressing the brake pedal.
- Pressing the (
) switch.
- Shifting the gear to N (Neutral).
- Decreasing vehicle speed to less than approximately 30 km/h (20 mph).
- ESC (Electronic Stability Control) is operating.
- Downshifting to 2nd gear when in Manual Shift mode.
The set speed will turn off but the Cruise
( ) indicator will stay on.
NOTICE
If Cruise Control pauses during a situation that is not mentioned, Kia recommends visiting an authorized Kia dealer/ service partner

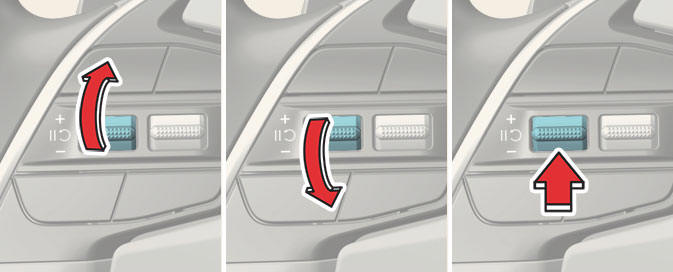

Resuming Cruise Control
Operate the (+), (-) or ( ) switch.
If you push the (+) switch up or (-) switch down, the set speed will be set to the current speed on the cluster.
If you press the ( ) switch, vehicle speed will resume to the preset speed.
The vehicle speed must be above 30 km/h (20 mph) for Cruise Control to resume.
WARNING
Check the driving condition before using
the ( ) switch. Driving speed may
sharply increase or decrease when you
press the (
) switch.
Turning off Cruise Control
Press the Driving Assist button to turn
Cruise Control off. The Cruise ( )
indicator will go off.
Always press the Driving Assist button to turn Cruise Control off when not in use.
NOTICE
If your vehicle is equipped with Manual Speed Limit Assist, press and hold the Driving Assist button to turn off Cruise Control. However, Manual Speed Limit Assist will turn on.
WARNING
Take the following precautions when using Cruise Control:
- Always set the vehicle speed under the speed limit in your country.
- Keep Cruise Control off when the
function is not in use, to avoid inadvertently
setting a speed. Check that
the Cruise (
) indicator is off.
- Cruise Control does not substitute for proper and safe driving. It is the responsibility of the driver to always drive safely and should always be aware of unexpected and sudden situations from occurring.
- Always drive cautiously to prevent unexpected and sudden situations from occurring. Pay attention to the road conditions at all times.
- Do not use Cruise Control when it may be unsafe to keep the vehicle at a constant speed:
When driving in heavy traffic, or when traffic conditions make it difficult to drive at a constant speed
- When driving on rainy, icy, or snowcovered roads
- When driving on hilly or windy roads
- When driving in windy areas
- When driving with limited view (possibly due to bad weather, such as fog, snow, rain and sandstorm)
- Do not use Cruise Control when towing a trailer.
