KIA Niro: Replacing inner panel fuse

KIA Niro EV, Hybrid - Second generation - (SG2) (2021-2024) - Owner's manual / Maintenance / Fuses / Replacing inner panel fuse

Operation

Turn the vehicle and all other switches off.

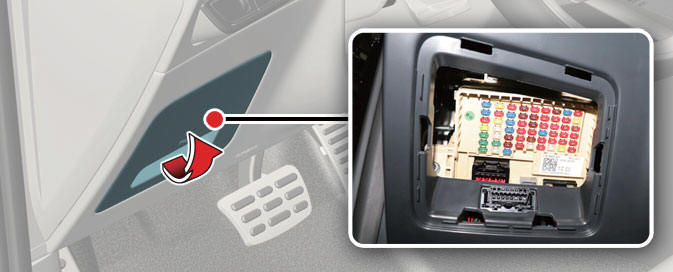

Open the fuse panel cover.

Replacing inner panel fuse

Pull the suspected fuse straight out.

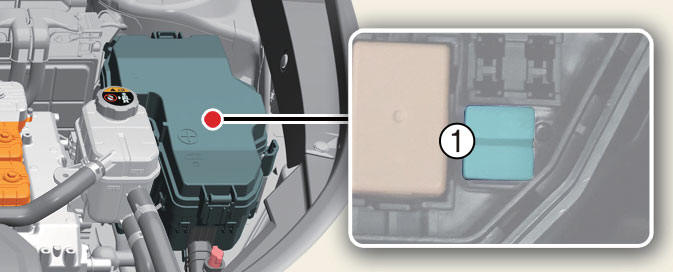

Use the removal tool (1) provided in the main fuse box in the engine compartment.

Replacing inner panel fuse

Check the removed fuse; replace it if it is blown. Spare fuses are provided in the instrument panel fuse panel (or in the engine compartment fuse panel).
Push in a new fuse of the same rating, and make sure it fits tightly in the clips.

INFORMATION

If the headlights or taillights, stoplights, day time running lights (DRL) do not work and the fuses are OK, consult a professional workshop. Kia recommends to consult an authorized Kia dealer/service partner.

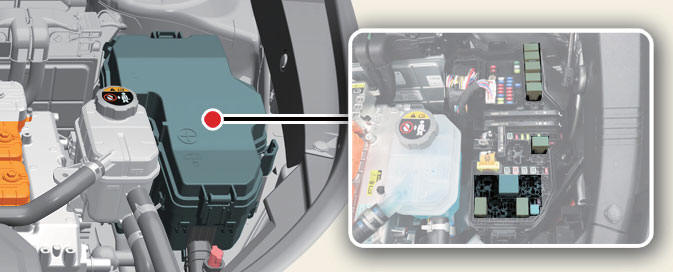

Replacing motor room fuse

Replacing blade/cartridge type fuses

Replacing blade/cartridge type fuses

Operation

Turn the vehicle and all other switches off.
Remove the fuse panel cover by pressing the tab and pulling the cover up.

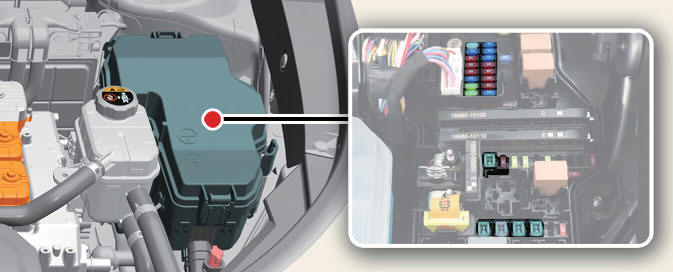

When the blade type fuse is disconnected, remove it by using the clip (1) designed for changing fuses located in the engine room fuse box. Upon removal, securely insert reserve fuse of equal quantity.

Replacing blade/cartridge type fuses

Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult a professional workshop. Kia recommends to consult an authorized Kia dealer/service partner.

Replacing main/multi fuses

Operation Turn off the vehicle. Remove the fuse panel cover by pressing the tab and pulling the cover up. Disconnect the negative battery cable. Remove the nuts shown in the picture above. Replace the fuse with a new one of th

Fuse/relay panel description

Driver's side fuse panel (Kia NIRO Hybrid)

For HEV vehicle For PHEV vehicle ICU Junction Block Fuse Name/ Symbol/ Fuse rating/ Circuit Protected AMP / / 30 A/ AMP (Amplifier) P/SEAT DRV/ / 30 A/ Driver Lumbar Support Switch, Driver Power Seat Switch, IMS (I
