KIA Niro: Power Door Mirror Actuator
Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Body Electrical System / Power Door Mirrors / Power Door Mirror Actuator

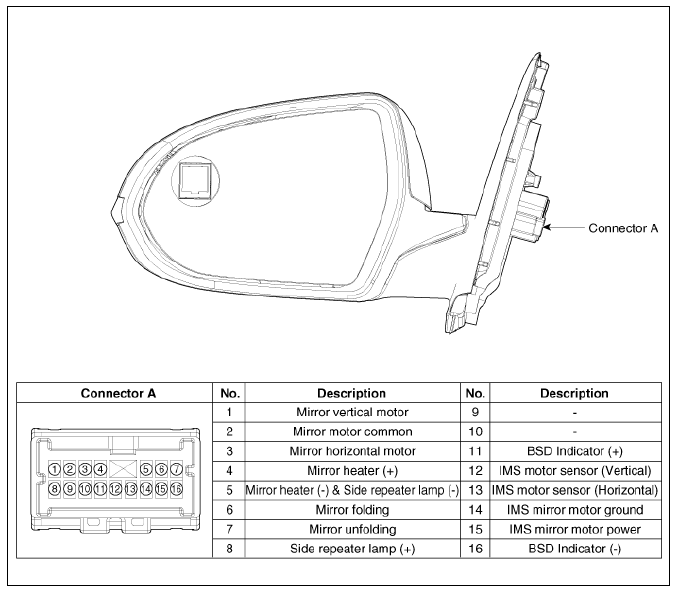

Power Door Mirror Actuator Components and components location
Power Door Mirror Actuator Repair procedures
Inspection
- Disconnect the negative (-) battery terminal.

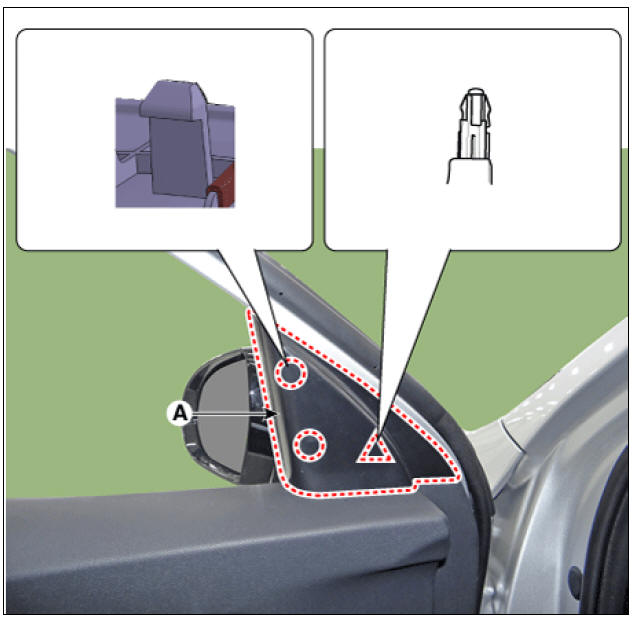

- Remove the front door quadrant inner cover (A).

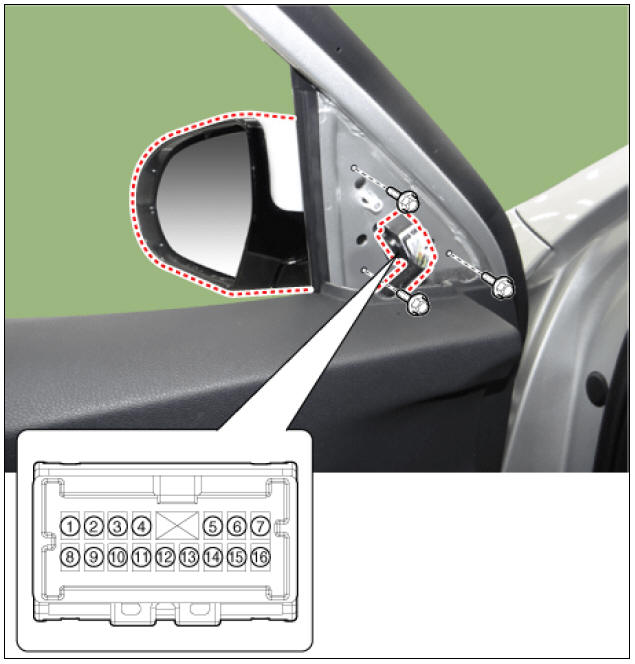

- Disconnect the power door mirror connector from the harness.

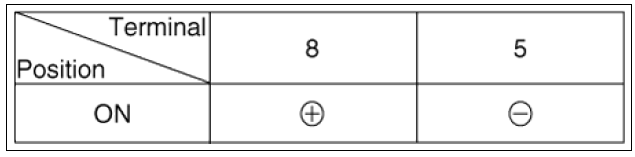

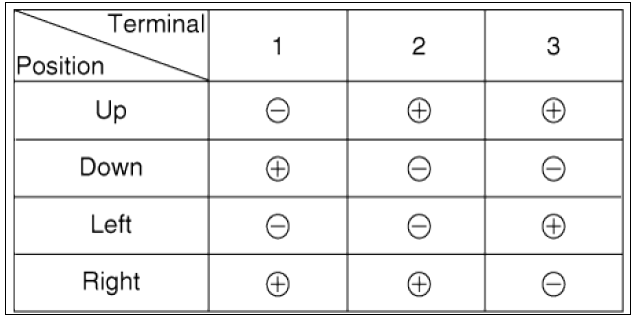

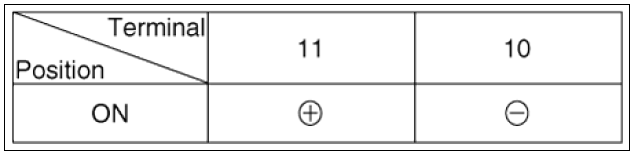

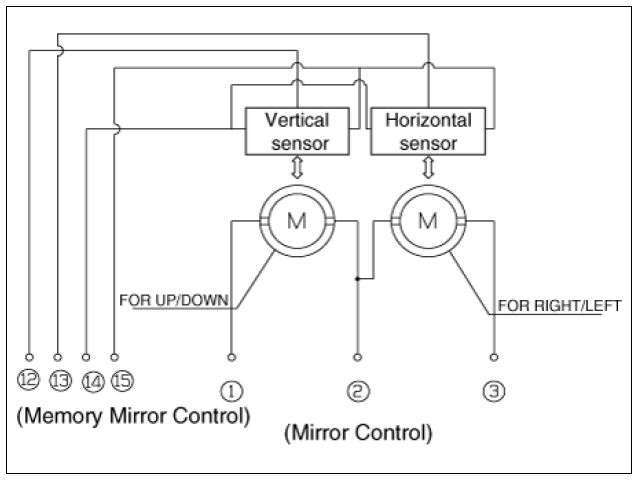

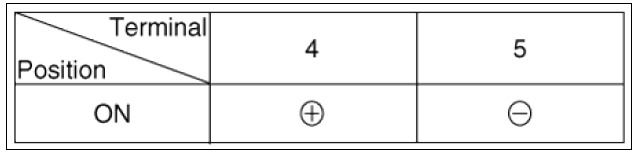

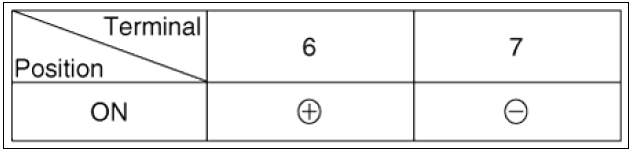

- Apply battery voltage to each terminal as shown in the table and verify that the mirror operates properly.
Mirror Control (LH/RT)
BSD Indicator
Mirror Heater
Side Repeater Lamp
Mirror Folding Motor
Removal

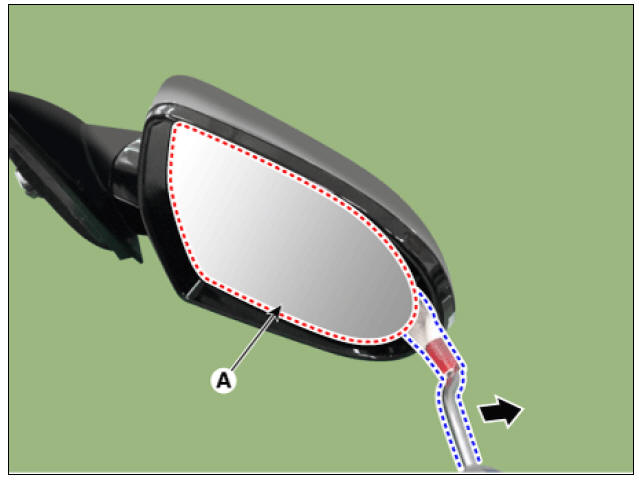

- After inserting the flat-bladed screwdriver or remover as shown in the illustration below, remove the mirror (A) by applying a momentary force.
Warning
- Wrap the tool with protective tape or cloth to prevent damage to the parts.
- Do not insert the tool too deeply.

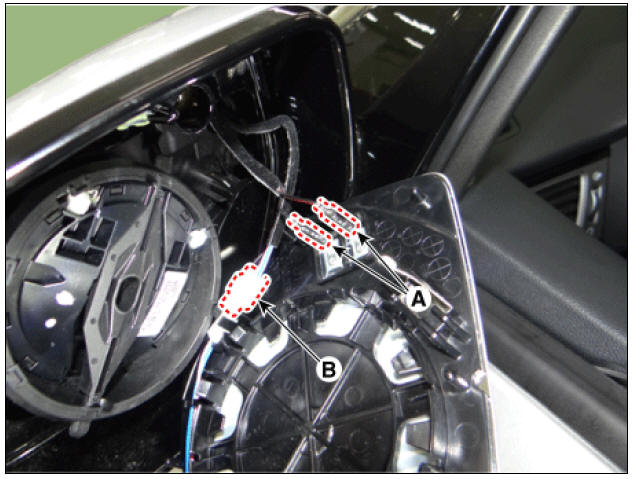

- Disconnect the heater connectors (A) and rear corner radar indicator connector (B).

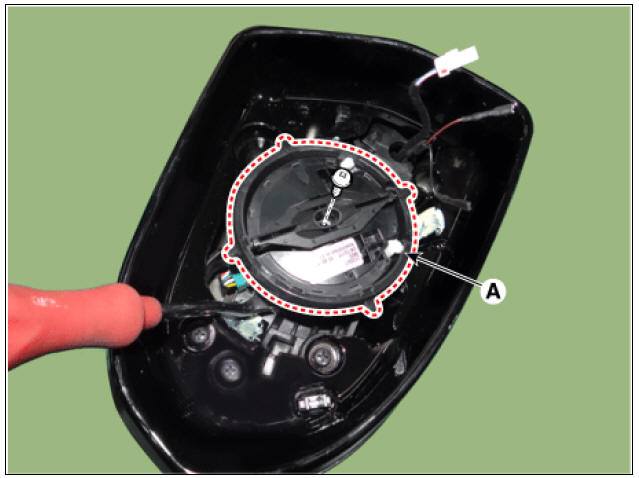

- Remove the mirror actuator (A) by using flat-bladed screwdriver or remover after loosening the screw.

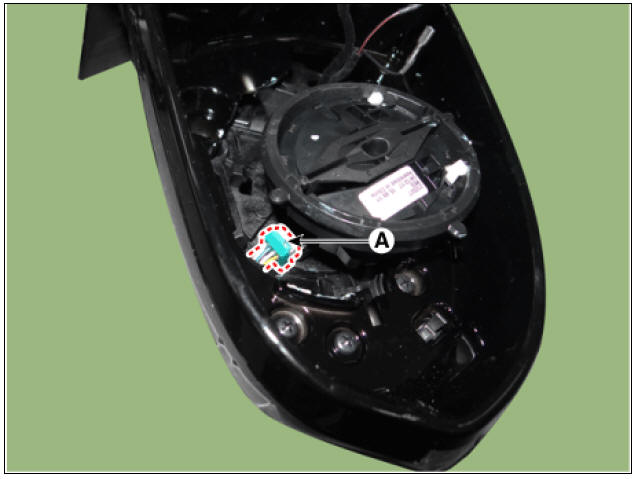

- Disconnect the mirror actuator connector (A).
Installation
- Install in the reverse order of removal.
