KIA Niro: Lane Keeping Assist settings

KIA Niro EV, Hybrid - Second generation - (SG2) (2021-2024) - Owner's manual / Driving your vehicle / Lane Keeping Assist (LKA) / Lane Keeping Assist settings

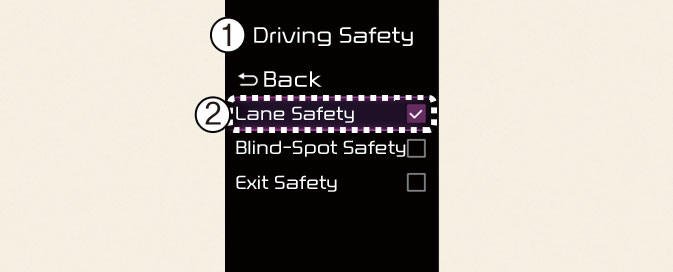

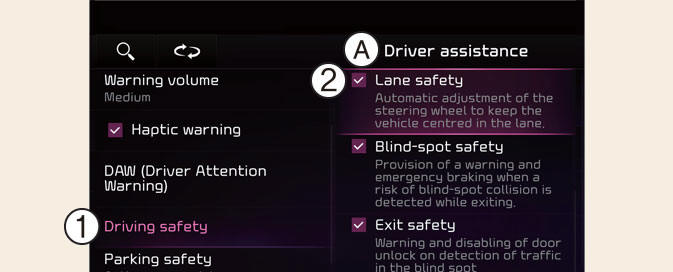

Lane safety

Lane safety

Lane safety

A: Driver assistance

  1. Driving safety
  2. Lane safety

With the vehicle on, touch Settings ? Driver Assistance ? Driving Safety on the instrument cluster or Settings ? Vehicle ? Driver assistance ? Driving safety on the infotainment system.

  • Lane safety: If Lane safety is selected, Lane Keeping Assist will automatically assist the driver's steering when lane departure is detected to help prevent the vehicle from moving out of its lane. If Lane safety is deselected, the yellow indicator light ( ) will appear on the cluster.

WARNING

  • Lane Keeping Assist does not control the steering wheel when the vehicle is driven in the middle of the lane.
  • The driver should always be aware of the surroundings and steer the vehicle if Lane safety is deselected.

CAUTION

When the trailer is connected, Lane Keeping Assist automatically turns off (if equipped). In this case, you cannot get help from Lane Keeping Assist. Always drive with care.

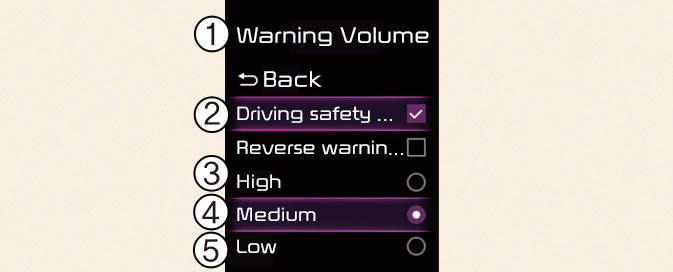

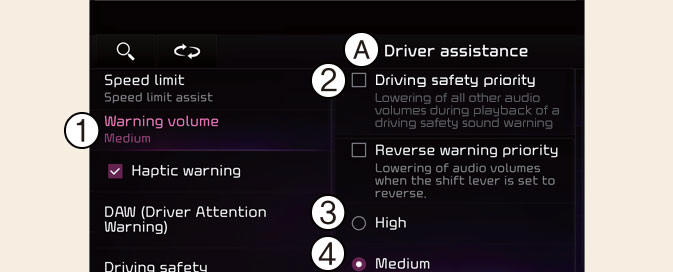

Warning volume

Warning volume

Warning volume

A: Driver assistance

  1. Warning volume
  2. Driving safety priority
  3. High
  4. Medium
  5. Low
  6. Off

With the vehicle on, touch Settings ? Driver Assistance ? Warning Volume on the instrument cluster or Settings ? Vehicle ? Driver assistance ? Driving safety ? Warning volume on the infotainment system to change the Warning volume to adjust the Warning volume levels; High, Medium, Low or Off.

If Driving safety priority is selected, the audio volume will temporarily decrease to warn the driver with the audible warning for safe driving.

NOTICE

  • If you change the Warning volume, the Warning volume of other Driver Assistance systems may change.
  • If Off is selected, steering wheel vibration will not turn off.
