KIA Niro: Inside Rear View Mirror
Kia Niro - First generation - (DE) (2017-2022) - Service and Repair Manual / Body (Interior And Exterior) / Mirror / Inside Rear View Mirror

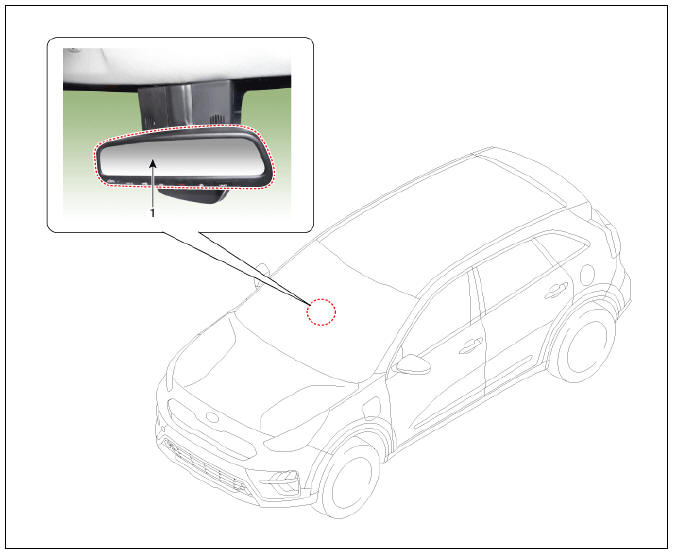

- Inside rear view mirror
Replacement
Manual Mirror

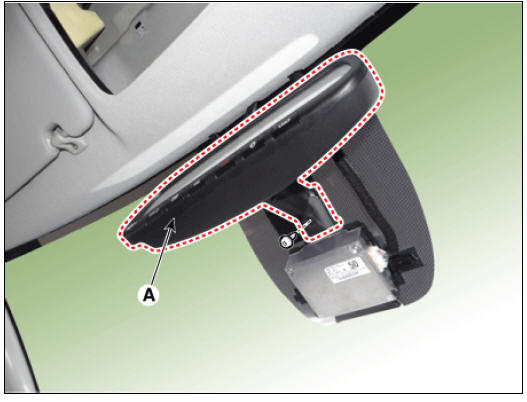

- Remove the inside rear view mirror (A) after loosening the screw.
- Install in the reverse order of removal.
ECM Mirror

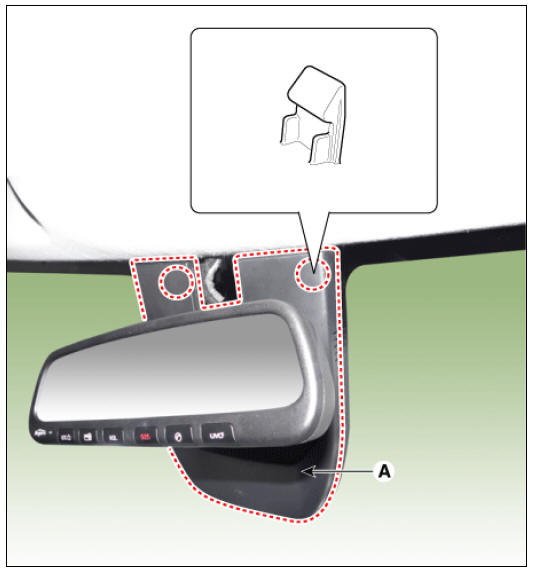

- Remove the ECM mirror cover (A).

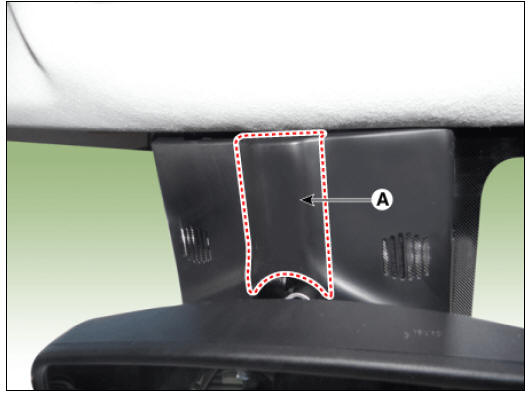

- Remove the rain sensor cover (A).

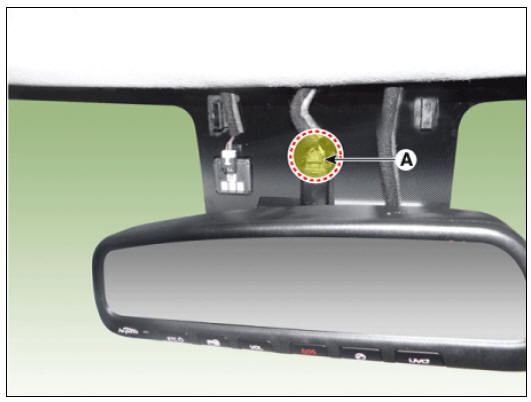

- Disconnect the ECM mirror connector (A).
- Loosen the ECM mirror mounting screw (A) and then push the ECM mirror base up to remove the ECM mirror assembly (B).
- Install in the reverse order of removal.
Warning
- Make sure that the connector is plugged in properly.
- Replace any damaged clips
