KIA Niro: Handling Wires And Harnesses

  1. Secure wires and wire harnesses to the frame with their respective wire ties at the designated locations.

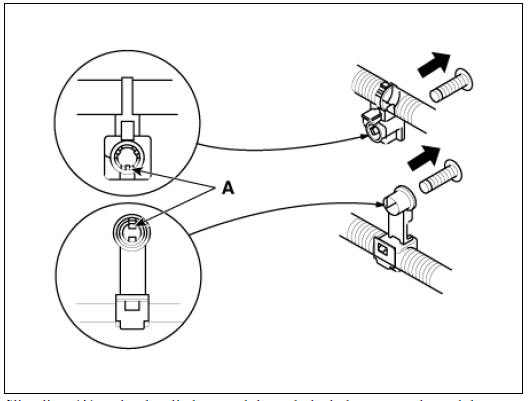

  2. Remove clips carefully; don't damage their locks (A).

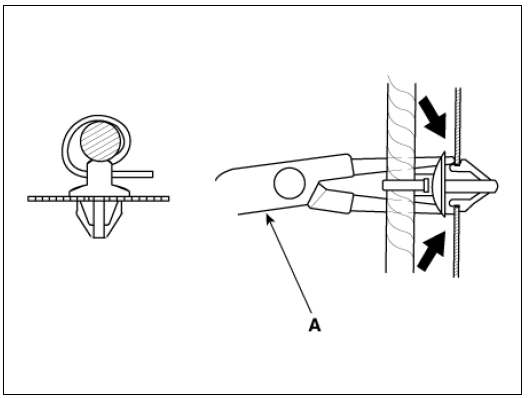

  1. Slip pliers (A) under the clip base and through the hole at an angle, and then squeeze the expansion tabs to release the clip.

  1. After installing harness clips, make sure the harness doesn't interfere with any moving parts.
  2. Keep wire harnesses away from exhaust pipes and other hot parts, from sharp edges of brackets and holes, and from exposed screws and bolts.

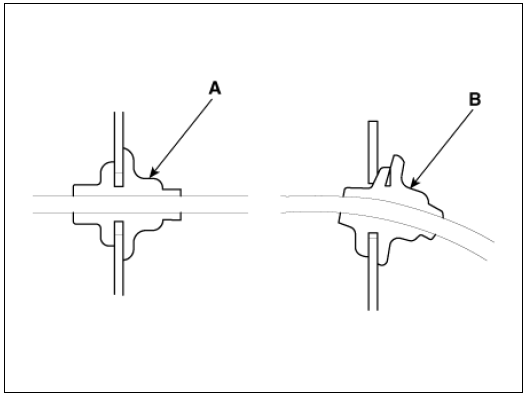

  3. Seat grommets in their grooves properly (A). Do not leave grommets distorted (B).

Testing and Repairing

Testing and Repairing

  1. Do not use wires or harnesses with broken insulation.

    Replace them or repair them by wrapping the break with electrical tape.

  2. After installing parts, make sure that no wires are pinched under them.
  3. When using electrical test equipment, follow the manufacturer's instructions and those described in this manual.

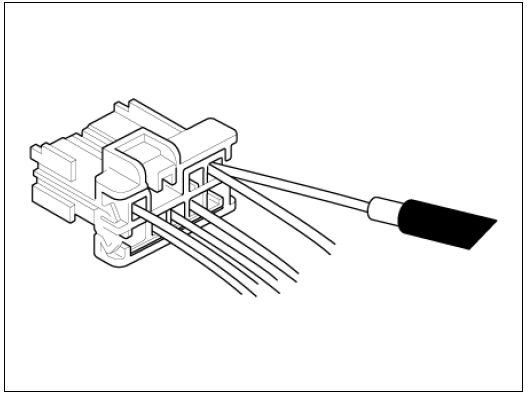

  4. If possible, insert the remover tool from the wire side (except waterproof connector).

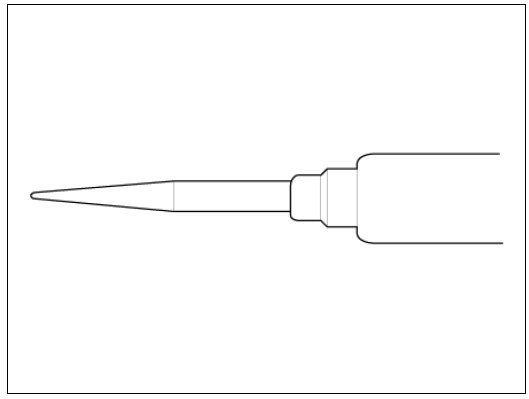

  1. Use a probe with a tapered tip.

    Refer to the user's guide in the wiring repair kit (Pub No. : TRK 015.)

Five-step Troubleshooting

Five-step Troubleshooting

  1. Verify the complaint

Turn on all the components in the problem circuit to verify the customer complaint. Note the symptoms. Do not begin disassembling or testing until you have narrowed down the problem area.

  1. Analyze the schematic

Look up the schematic for the problem circuit.

Determine how the circuit is supposed to work by tracing the current paths from the power feed through the circuit components to ground. If several circuits fail at the same time, the fuse or ground is a likely cause.

Based on the symptoms and your understanding of the circuit operation, identify one or more possible causes of the problem.

  1. Isolate the problem by testing the circuit.

Make circuit tests to check the diagnosis you made in step 2. Keep in mind that a logical, simple procedure is the key to efficient troubleshooting.

Test for the most likely cause of failure first. Try to make tests at points that are easily accessible

  1. Fix the problem

Once the specific problem is identified, make the repair. Be sure to use proper tools and safe procedures.

  1. Make sure the circuit works

Turn on all components in the repaired circuit in all modes to make sure you've fixed the entire problem. If the problem was a blown fuse, be sure to test all of the circuits on the fuse. Make sure no new problems turn up and the original problem does not recur.

Installation of the transmitting device

Electronically controlled computers are designed not to be interrupted by other radio signals, but it can be affected by a remote control of even less than 25 W output if the antenna or cable of a remote control is wired near the computer. To prevent this, follow the below directions.

  1. Install the antenna on the roof or rear bumper.
  2. Keep the antenna cables at least 200 mm away from the computer or wiring as they transmit radio signals.
  3. Decrease the standing-wave ratio by using proper antennas and cables.
  4. Do not install remote control with high output.
  5. After installing the remote control, check the engine by generating radio signals while idling the engine.

Warning

  • The standing-wave ratio : When connected to cables and antennas of different impedence, the input impedence Zi changes based on the length of cable and frequency of remote control, and the voltage range also changes based on position.
  • This rate of the maximum and the minimum voltage is called the standing-wave ratio, and also refers to the rate of the antenna impedance and cable impedance.
  • The volume of radio signals from cables is proportional to the standing-wave ratio volume, hence the influence to electronic parts increases.

Power Window and Sunroof Reset

If negative (-) battery cable was removed or fuse was replaced while opening/closing the power window or sunroof, perform initialization again as the default value of motor is erased.

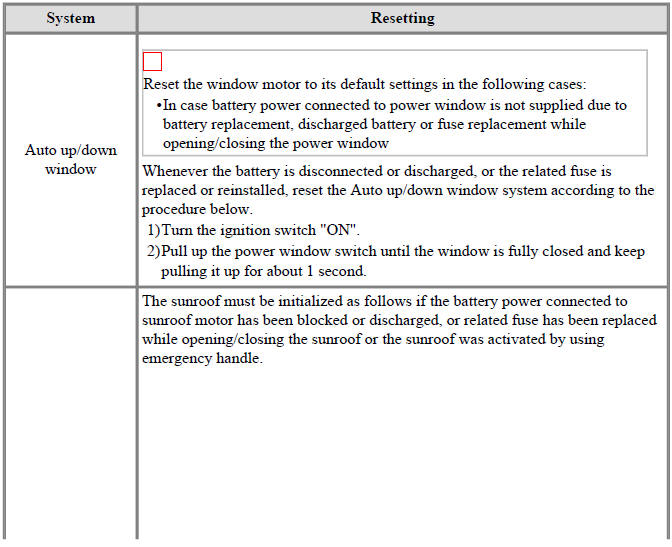

System:

System:

Auto up/down window

Resetting:

Warning

Reset the window motor to its default settings in the following cases:

  • In case battery power connected to power window is not supplied due to battery replacement, discharged battery or fuse replacement while opening/closing the power window

Whenever the battery is disconnected or discharged, or the related fuse is replaced or reinstalled, reset the Auto up/down window system according to the procedure below.

1) Turn the ignition switch "ON".

2) Pull up the power window switch until the window is fully closed and keep pulling it up for about 1 second.

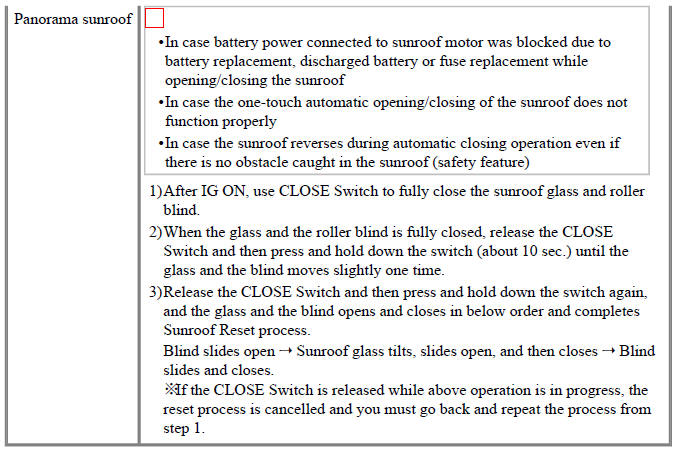

System:

Panorama sunroof

Resetting:

The sunroof must be initialized as follows if the battery power connected to sunroof motor has been blocked or discharged, or related fuse has been replaced while opening/closing the sunroof or the sunroof was activated by using emergency handle.

Warning

  • In case battery power connected to sunroof motor was blocked due to battery replacement, discharged battery or fuse replacement while opening/closing the sunroof
  • In case the one-touch automatic opening/closing of the sunroof does not function properly
  • In case the sunroof reverses during automatic closing operation even if there is no obstacle caught in the sunroof (safety feature)

1) After IG ON, use CLOSE Switch to fully close the sunroof glass and roller blind.

2) When the glass and the roller blind is fully closed, release the CLOSE Switch and then press and hold down the switch (about 10 sec.) until the glass and the blind moves slightly one time.

3) Release the CLOSE Switch and then press and hold down the switch again, and the glass and the blind opens and closes in below order and completes Sunroof Reset process.

Blind slides open Sunroof glass tilts, slides open, and then closes → Blind slides and closes.

* If the CLOSE Switch is released while above operation is in progress, the reset process is cancelled and you must go back and repeat the process from step 1.

Trip computer, Clock and Audio Reset

When reconnecting the battery cable after disconnecting, recharging battery after discharged or installing the memory fuse located on the driver's side panel after removing, be sure to reset systems mentioned on the below table.

In addition, when replacing or reinstalling the fuses after removing, reset according to the below table.

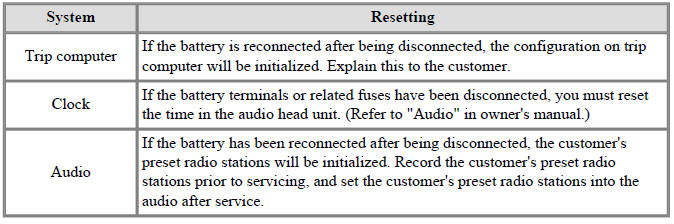

System:

System:

Trip computer

Resetting:

If the battery is reconnected after being disconnected, the configuration on trip computer will be initialized. Explain this to the customer.

System:

Clock

Resetting:

If the battery terminals or related fuses have been disconnected, you must reset the time in the audio head unit. (Refer to "Audio" in owner's manual.)

System:

Audio

Resetting:

If the battery has been reconnected after being disconnected, the customer's preset radio stations will be initialized. Record the customer's preset radio stations prior to servicing, and set the customer's preset radio stations into the audio after service.
