KIA Niro: Displaying operating status
You can see the status of the Smart Cruise Control operation in the Driving Assist view on the cluster. Refer to "LCD display modes"
Smart Cruise Control will be displayed as below depending on the status of the function.

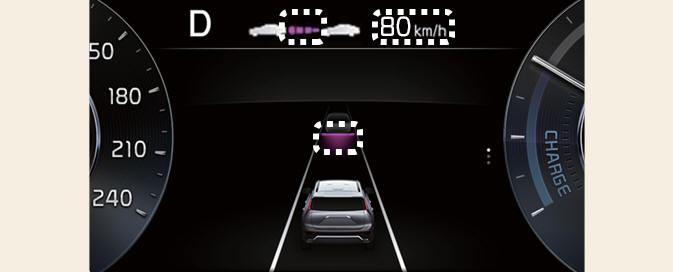

Operating
Temporarily canceled
Smart Cruise Control will be displayed as below depending on the status of the function.

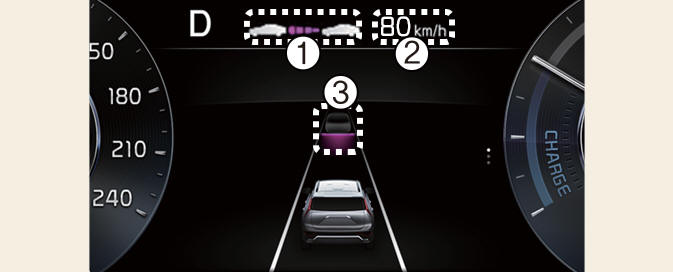

- When operating
- Whether there is a vehicle ahead and the selected distance level
- Set speed
- Whether there is a vehicle ahead and the target vehicle distance

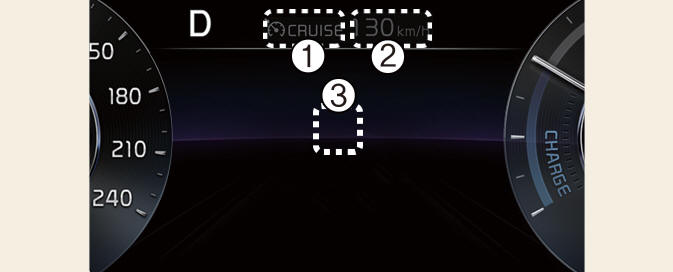

- When temporarily canceled
- Your vehicle (shaded)
- Previous set speed (shaded)
- Whether there is a vehicle ahead (if equipped)
NOTICE- (Kia Niro Hybrid only)
- The distance of the front vehicle on the cluster is displayed according to the actual distance between your vehicle and the vehicle ahead.
- The target distance may vary according to your driving speed and the set distance level. If your driving speed is low, even though the vehicle distance have changed, the change of the target vehicle distance may be small.
- The images and colors in the instrument cluster may differ depending on the cluster type or theme selected from the settings menu.
Accelerating temporarily

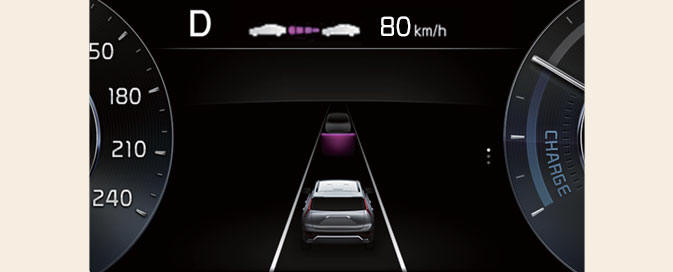

If you want to speed up temporarily without altering the set speed while Smart Cruise Control is operating, depress the accelerator pedal. While the accelerator pedal is depressed, the set speed, distance level and target distance will blink on the cluster.
However, if the accelerator pedal is depressed insufficiently, the vehicle may decelerate.
WARNING
Be careful when accelerating temporarily, because the speed and distance is not controlled automatically even if there is a vehicle in front of you.
Based on Driving Style operating (if equipped) - (Kia Niro EV only)

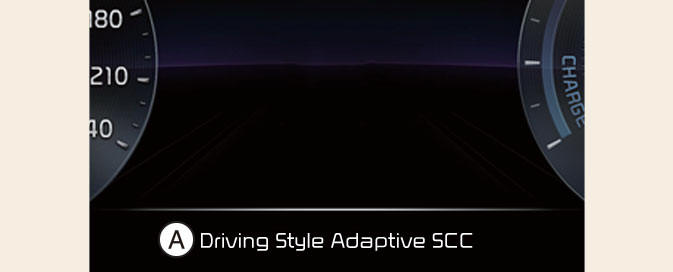

A: Driving Style Adaptive SCC
When Based on Driving Style is operating, the message will appear on the cluster for 2 seconds, and the distance level and target distance will be displayed based on the driving style.
