KIA Niro: Adjusting regenerative braking with paddle shifter
KIA Niro EV, Hybrid - Second generation - (SG2) (2021-2024) - Owner's manual / Driving your vehicle / Regenerative braking system (Kia Niro EV) / Adjusting regenerative braking with paddle shifter
The regenerative braking system allows you to charge the battery when you use the brakes to stop the vehicle.

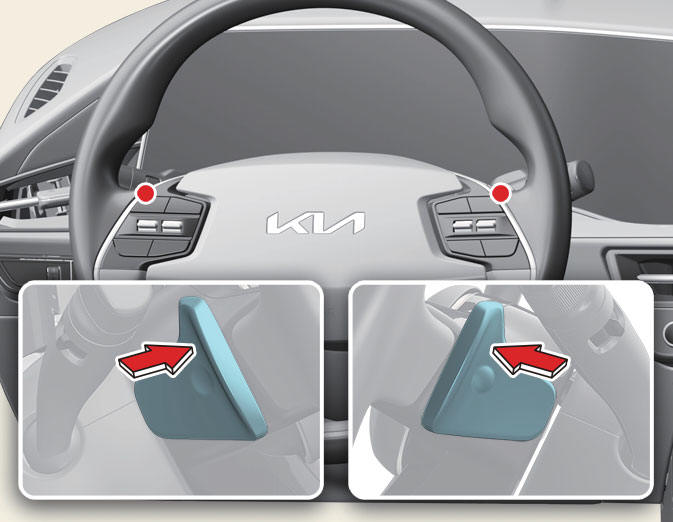

Adjusting regenerative braking with paddle shifter
Operation
- Pull the left side (
) of
the paddle
shifter to increase regenerative braking
and deceleration. - Pull the right side (
) of
the paddle
shifter to decrease regenerative braking
and deceleration.
Non-operating condition(s)
- The left side ( ) and right
side ( )
of paddle shifters are pulled simultaneously.
- Decelerating the vehicle by depressing the brake pedal.
- Cruise Control or Smart Cruise Control is operating.
- The regenerative braking system is activated in 100% charge.
- The vehicle is in SNOW mode.
- The trailer is installed.

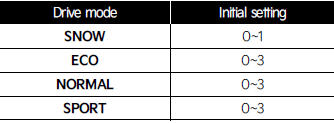

Regenerative braking system according to DRIVE MODE
- Initial setting of the regenerative braking level and adjustable range vary according to the selected drive mode.
- The setting will return to 1 when the vehicle is restarted from 0.
- For more details, refer to "Drive mode
integrated control system"
